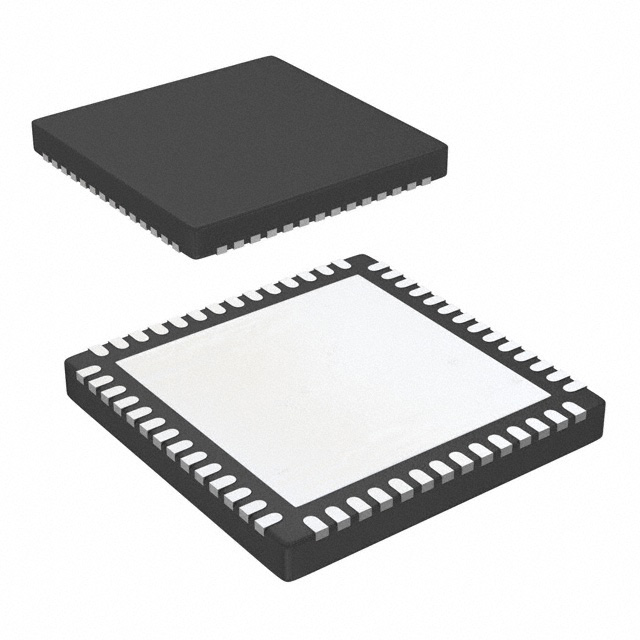

The AD9656BCPZ-125 is a four-channel, 16-bit, 125 MSPS analog-to-digital converter (ADC) produced by Analog Devices (ADI) designed for low cost, low power consumption, small size, and ease of use ‌‌. The AD9656BCPZ-125 has an on-chip sampling-hold circuit with excellent dynamic performance and low power consumption, making it suitable for applications requiring a small package size ‌.

The main features of AD9656BCPZ-125 include:

1. Compact size. Four ADCs are integrated in a small 8mm x 8mm package.

2. The on-chip phase-locked loop (PLL) enables users to provide a single ADC sampling clock, and the corresponding JESD204B data rate clock is generated by multiplying the PLL by the ADC sampling clock

3. The configurable JESD204B output module supports a maximum sampling rate of 6.4 Gbps per channel.

4. The JESD204B output module supports 1/2/4 channel configuration

5. Low power consumption: At 2 channels and 125 MSPS, the power consumption per channel is 198 mW.

6. SPI control offers rich and flexible features, which can meet the requirements of various specific systems.

Application field

The AD9656BCPZ-125 high-speed ADC is widely used in the following fields:

Medical imaging

High-speed imaging

Orthogonal radio receiver

Diversity radio receiver

Portable testing equipment
