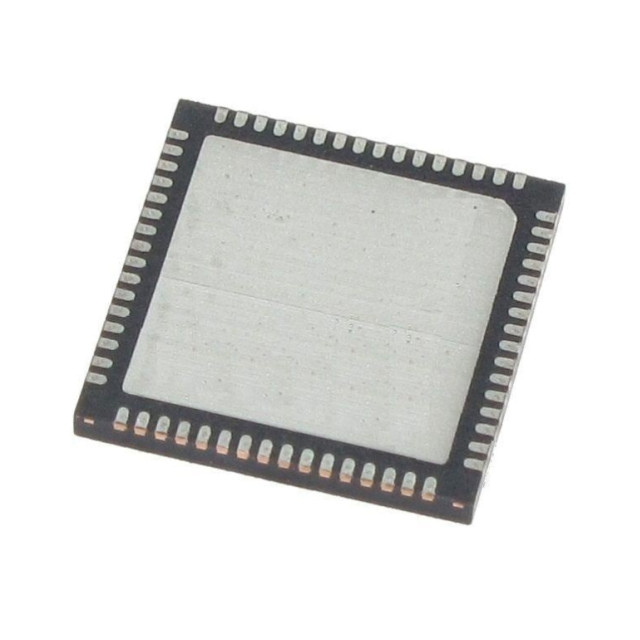

The AD9234BCPZ-500 device is a dual-channel, 12-bit, 500 MSPS analog-to-digital converter (ADC) designed for low power, small size, and ease of use ‌. This ADC device is equipped with an on-chip buffer and sampling-hold circuit, and is suitable for sampling wideband analog signals. The AD9234BCPZ-500 is optimized for wide input bandwidth, high sampling rate, excellent linearity and low power consumption in a small package ‌.

Main characteristics

The features of AD9234BCPZ-500 include:

JESD204B (Subclass 1) encodes serial digital output

Total power consumption per channel at 1 GSPS: 1.5 W (default setting)

SFDR: 85 dBFS

SNR: 65.6 dBFS

ENOB = 10.4 bits (10 MHz, 1 GSPS)

DNL = ±0.16 LSB; Integral nonlinearity (INL) : = ±0.35 LSB(1 GSPS)

Noise density: 150 dBFS/Hz

Powered by 1.25V, 2.5V and 3.3V DC power supplies

Low swing full-scale input: 1.63 Vp-p typical value

No code loss

Internal reference voltage source of ADC

Flexible termination impedance

400 Ω, 200 Ω, 100 Ω and 50 Ω differential

The full power bandwidth of 2 GHz available analog input

95 dB channel isolation/crosstalk

The amplitude detection bit supports the realization of efficient AGC

Differential clock input

Each channel has an optional 2-way DDC

Differential clock input

Integer clock division values: 1, 2, 4 or 8

Flexible JESD204B channel configuration

Small-signal disturbance

These characteristics make the AD9234BCPZ-500 particularly suitable for applications that require high-speed and high-precision signal processing.
