The AD9234BCPZ-1000 is a dual-channel, 12-bit analog-to-digital converter (ADC) designed for high-speed data acquisition and processing ‌. With 12-bit resolution and up to 1 GSPS sampling rate, this product is suitable for a wide range of high-speed signal processing applications ‌.

This dual-channel ADC core adopts a multi-level, differential pipeline architecture and integrates output error correction logic. Each ADC features a wideband wide buffered input, supporting a variety of input ranges selectable by the user. Integrated reference voltage sources can simplify the design.

The AD9234BCPZ-1000 has the following main features

Low-power analog core, 12-bit, 1.0 GSPS dual-channel analog-to-digital converter (ADC), 1.5 W per channel.

It features a wide full-power bandwidth and supports IF signal sampling up to 2 GHz.

Providing a buffer input with a programmable input terminal simplifies the design and implementation of the filter.

The flexible serial port interface (SPI) controls various product features and functions to meet specific system requirements.

Programmable rapid over-range detection.

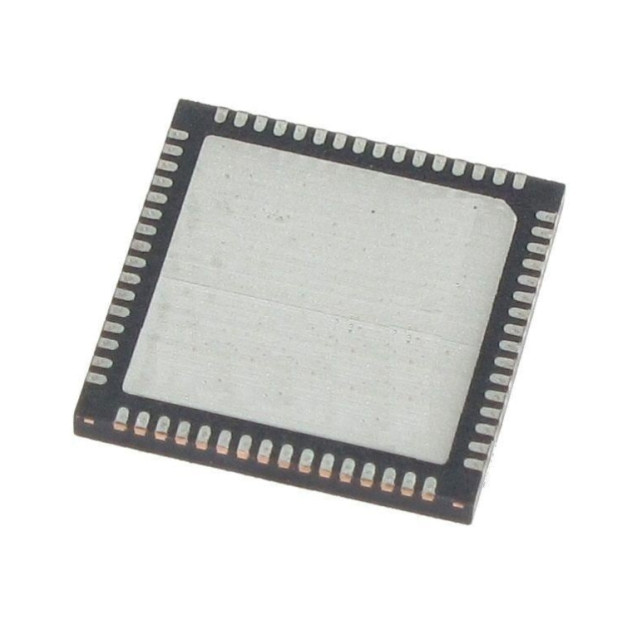

9mm × 9mm, 64-pin LFCSP.

Pin-compatible AD9680 14-bit, 1 GSPS dual-channel ADC.

In addition, the AD9234BCPZ-1000 high-speed ADC is widely used in the following fields:

Communication system ‌ : In wireless base station, radar and satellite communication, this ADC can process high-speed signals efficiently to ensure the reliability and accuracy of data transmission ‌. ‌

Medical equipment ‌ : In medical imaging, ultrasound imaging and biosignal monitoring, the AD9234BCPZ-1000 can provide high-quality signal conversion, improving diagnostic results and data processing capabilities ‌.

Industrial Automation ‌ : This chip can meet the requirements of efficient data acquisition in automated test equipment, monitoring systems and data acquisition systems ‌.
