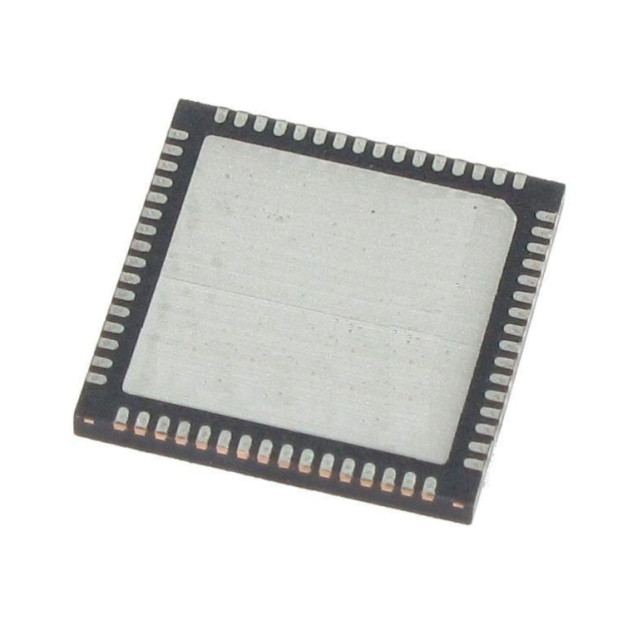

The AD9690BCPZ-1000 is a 14-bit, 1 GSPS analog-to-digital converter (ADC). This device is equipped with an on-chip buffer and sampling-hold circuit, and is specifically designed for low power consumption, small size and ease of use. The AD9690BCPZ-1000 is designed for wideband analog signal sampling up to 2 GHz. It has the following main specifications:

Resolution: 14 bits

Number of channels: 1 Channel

Interface type: JESD204B, SPI

Sampling ratio: 1 GS/s

Input type: Differential

Structure: Pipeline

Analog power supply voltage: 1.25V, 2.5V, 3.3V

Digital power supply voltage: 1.25V, 1.8V

SNR - Signal-to-Noise Ratio: 57 dB

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Package/Box: LFCSP-64

DNL - Differential nonlinearity: 0.5 LSB

ENOB - Significant bits: 9 bits

FPBW - Full power bandwidth: 2 GHz

Gain error: 0% FSR

Inl-integral nonlinearity: 2.5 LSB

Humidity sensitivity: Yes

Number of converters: 1 Converter

Working power supply voltage: 1.25V, 2.5V, 3.3V

Pd- Power dissipation: 2 W

Reference type: Internal

Reference voltage: 1 V

SFDR - Stray dynamic range: 68 dB

Shutdown: No Shutdown

SINAD - Signal-to-noise and distortion rate: 56 dB

Power supply voltage - Maximum: 1.25V, 2.5V, 3.3V

Power supply voltage - minimum: 1.25V, 2.5V, 3.3V

Type: High Speed ADC

Unit weight: 39 mg

AD9690BCPZ-1000 is widely used in a variety of communication and signal processing fields ‌, mainly including the following aspects:

Communication

Multi-band and multi-mode digital word receivers: 3G/4G, TD-SCDMA, W-CDMA, GSM, LTE

General-purpose software radio

Ultra-wideband satellite receiver

Instruments and meters

Radar

Signal Intelligence (SIGINT)

Upstream receiving path of DOCSIS 3.0 CMTS

HFC digital reverse path receiver
