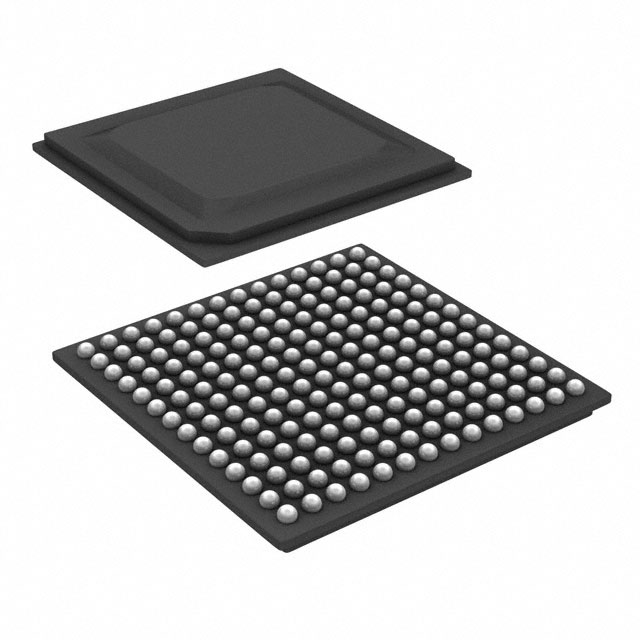

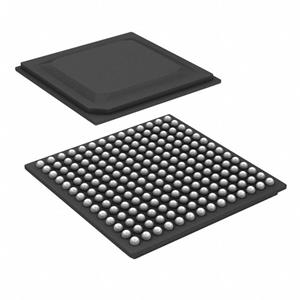

The AD9684BBPZ-500 is a dual-channel, 14-bit, 500 MSPS ADC launched by Analog Devices. This device is equipped with an on-chip buffer and sampling-hold circuit, and is specifically designed for low power consumption, small size and ease of use. This product is used for sampling wideband analog signals. The AD9684BBPZ-500 is optimized for wide input bandwidth, high sampling rate, excellent linearity and small package with low power consumption.

Its main features include:

LVDS digital output

Total power consumption per channel at 500 MSPS: 1.1 W (default setting)

Spurious dynamic range (SFDR) : 85 dBc (170MHz fIN, 500 MSPS)

Signal-to-noise Ratio (SNR) : 68.6 dBFS (170MHz fIN, 500 MSPS)

ENOB = 10.9 bits (170 MHz fIN)

DNL = ±0.5 LSB

INL = ±2.5 LSB

Noise density = -153 dBFS/Hz (500 MSPS)

Powered by 1.25V, 2.50V and 3.3V power supplies

No code loss

The analog-to-digital converter (ADC) has an internal reference voltage source

Furthermore, the AD9684BBPZ-500 is widely used in various application fields, including:

Communication

Diversity multi-band and multi-mode digital word receiver

3G/4G, TD-SCDMA, WCDMA, MC-GSM, LTE

General-purpose software radio

Ultra-wideband satellite receiver

Instruments and meters (spectrum analyzer, network analyzer, integrated RF test solution)

Radar

Digital oscilloscope

High-speed data acquisition system

The upstream receiving path of DOCSIS CMTS

HFC digital reverse path receiver
