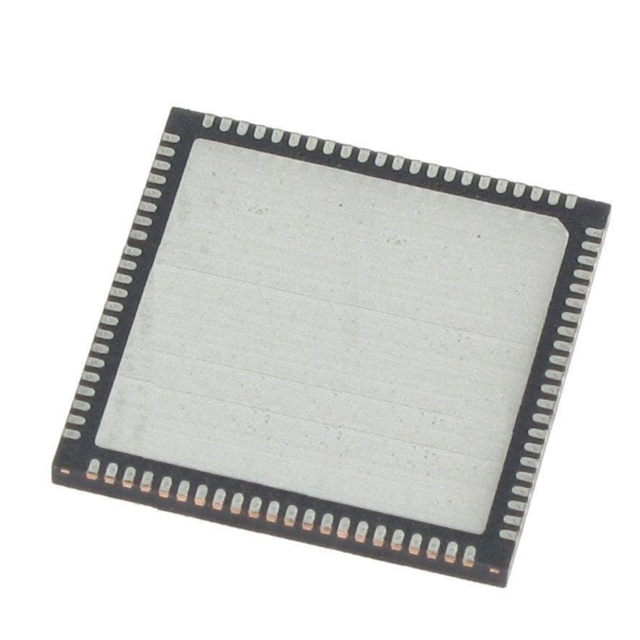

The AD9691BCPZ-1250 is a dual-channel, 14-bit, 1.25GSPS analog-to-digital converter (ADC) specifically designed for low power consumption, small size, and ease of use. The device has an on-chip buffer and sampling-hold circuit for wideband analog signal sampling up to 1.5 GHz ‌. The AD9691BCPZ-1250 features a multi-stage, differential pipeline architecture with integrated output error correction logic. Each ADC has a wideband wide input and supports multiple input ranges ‌.

The main features of AD9691BCPZ-1250 are as follows:

JESD204B (Subclass 1) encodes serial digital output

Total power consumption per channel: 1.9W (default setting)

SFDR = 77 dBFS (340 MHz)

Signal-to-noise ratio (SNR) : 63.4 dBFS (340 MHz, AIN = -1.0 dBFS)

The noise density is -152.6 dBFS/Hz

Dc power supply: 1.25V, 2.50V and 3.3V

No code loss

1.58V p-p differential full-scale input voltage

Flexible termination impedance

400 Ω, 200 Ω, 100 Ω and 50 Ω differential

The full power bandwidth of 1.5 GHz available analog input

95 dB channel isolation/crosstalk

Amplitude detection bits for efficient AGC implementation

Each channel has two integrated broadband digital processors

12-bit NCO, up to 4 cascaded half-band filters

Divide the integer clock by 1, 2, 4 or 8

Flexible JESD204B channel configuration

Timestamp function

Small signal jitter

Application field

The AD9691BCPZ-1250 is widely used in various communication and test measurement fields, including:

Communication (broadband receiver and digital predistortion)

Instruments and meters (spectrum analyzer, network analyzer, integrated RF test solution)

DOCSIS 3.x CMTS upstream receiving path

High-speed data acquisition system
