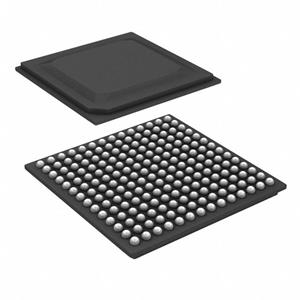

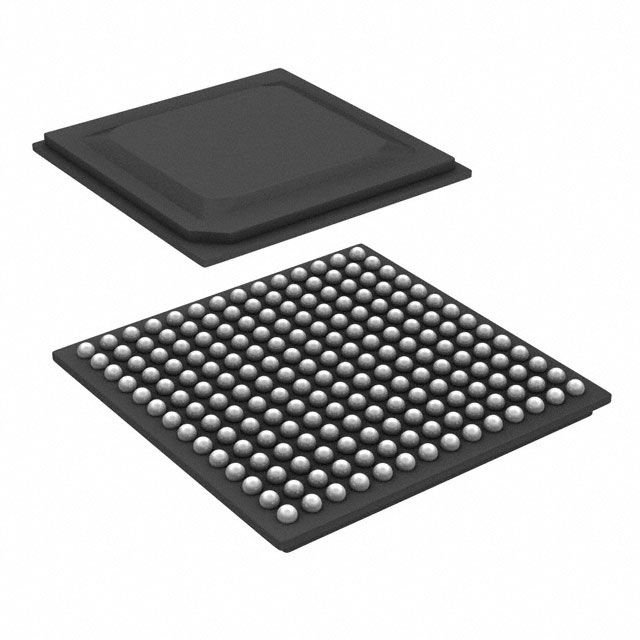

The AD9699BBPZ-3000 is a single-channel, 14-bit 3 GSPS analog-to-digital converter (ADC). This device is equipped with an on-chip buffer and sampling-hold circuit, and is specifically designed for low power consumption, small size and ease of use. This product is designed to support applications that can directly sample wideband analog signals up to 5 GHz. The -3 dB bandwidth of the ADC input is 9 GHz. The AD9699BBPZ-3000 is optimized for wide input bandwidth, high sampling rate, excellent linearity and small package with low power consumption.

The main specifications of AD9699BBPZ-3000 are as follows:

Resolution: 14 bits

Number of channels: 1 Channel

Interface type: SPI

Minimum operating temperature: -20 ° C

Maximum operating temperature: + 100 ° C

Package/Box: BGA-196

Gain error: 6.07%FSR

Inl-integral nonlinearity: 18.1 LSB

Humidity sensitivity: Yes

Pd- Power dissipation: 2.472 W

Furthermore, the AD9699BBPZ-3000 is applicable to a variety of application scenarios, including:

Diversity multi-band and multi-mode digital word receiver

3G/4G, TD-SCDMA, W-CDMA, GSM, LTE-A

Electronic test and measurement system

Phased array radar and electronic warfare

Upstream receiving path of DOCSIS 3.0 CMTS

HFC digital reverse path receiver

LIDAR
