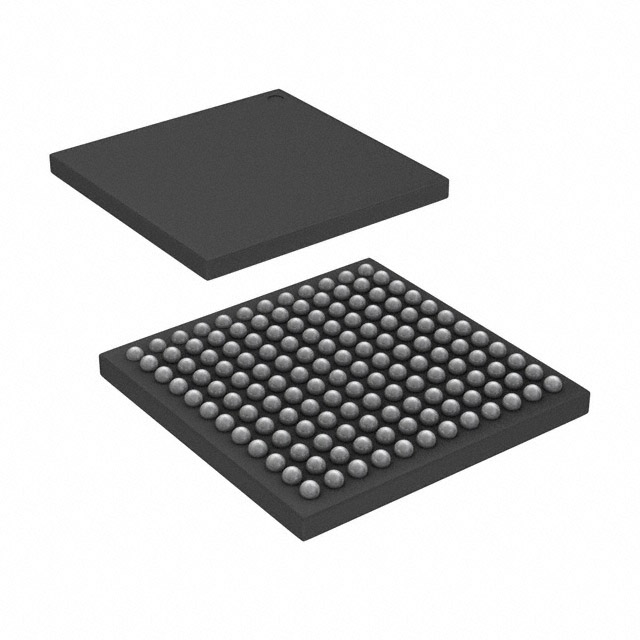

The AD9278BBCZ is designed for low cost, low power, small size and easy to use applications. It is equipped with an eight-channel variable gain amplifier (VGA), a low-noise preamplifier (LNA), an anti-aliasing filter (AAF), a 12-bit 10 MSPS to 65 MSPS analog-to-digital converter (ADC), and an I/Q demodulator with programmable phase rotation.

The key parameters of AD9278BBCZ include:

Package/Box: : CSPBGA-144

Resolution: 12 bits

Number of channels: 8 channels

Interface type: SPI

Sampling ratio: 65 MS/s

Input type: : Differential/Single-Ended

Structure: : Pipeline

Analog power supply voltage: 1.8V, 3V

Digital power supply voltage: 1.8V

SNR - Signal-to-Noise Ratio: 70 dB

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Application field

The AD9278BBCZ is widely used in applications that require low power consumption, small size and high dynamic range, and is particularly suitable for portable ultrasonic systems. Designed to significantly reduce system size, complexity and power consumption, suitable for places such as hospitals, clinics and emergency units that require high-performance ultrasound equipment ‌.
