The LTM9009CY-14 is a 14-bit, 80Msps low-power 8-channel ADC, specifically designed for the digital processing of high-frequency and wide dynamic range signals. Its main features include:

8-channel synchronous sampling ADC

73.1dB SNR

88dB SFDR

Low power: 140mW / 113mW / 94mW (per channel)

Single 1.8V power supply

Serial LVDS output: 1 or 2 bits per channel

Optional input range: 1VP-P to 2VP-P

800MHz full power bandwidth sampling and holding (S/H)

Shutdown and nap mode

Serial SPI port for configuration

Internal bypass capacitor, no external components

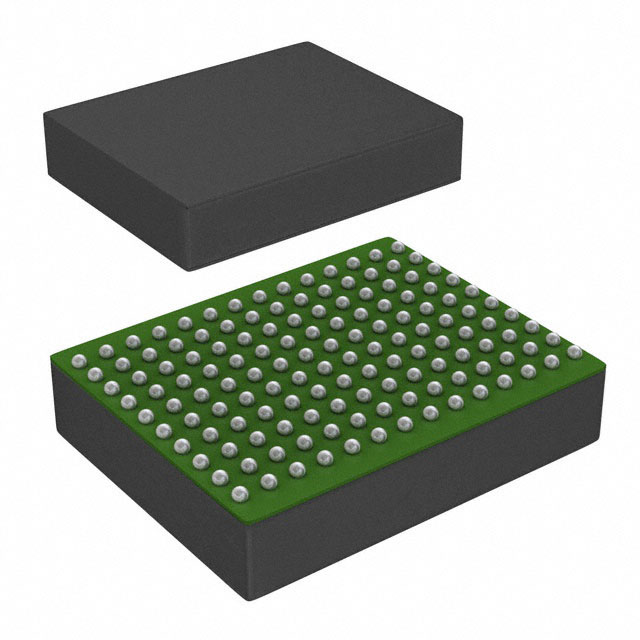

140-pin (11.25mm x 9mm) BGA package

Application field

The LTM9009CY-14 is suitable for a variety of applications ‌, including:

Communication

Cellular base station

Software-defined radio

Portable medical imaging

Multi-channel data acquisition

Non-destructive testing
