The LTM9009IY-14 is an 8-channel, synchronously sampled, 14-bit analog-to-digital converter (ADC) designed for the digital processing of high-frequency, wide dynamic range signals. Its AC performance includes 73.1dB SNR and 88dB parasitic dynamic range (SFDR). The low power consumption of each channel reduces heat in applications with a high number of channels. The integrated bypass capacitor and straight-through lead-out pin configuration reduces the overall board space requirements.

Technical Specification

The main specifications of LTM9009IY-14 include:

Digit number: 14

Sampling rate (per second) : 80M

Input number: 8

Input type: Differential

Data interface: LVDS - Serial

Configuration: S/H-ADC

Ratio -S /H:ADC: 1:1

Number of A/D converters: 8

Architecture: Pipeline

Reference types: External, Internal

Voltage - Power supply, simulation: 1.7V to 1.9V

Voltage - Power supply, digital: 1.7V to 1.9V

Feature: Synchronous sampling

Operating temperature: -40°C to 85°C

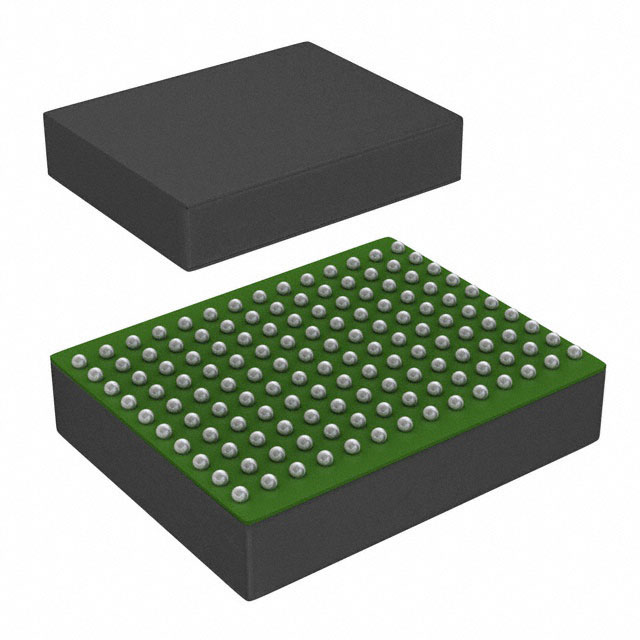

Package/Shell: 140-BGA

Installation type: Surface mount type

These specifications make the LTM9009IY-14 suitable for areas such as communications, cellular base stations, software-defined radio, portable medical imaging, multi-channel data acquisition and non-destructive testing ‌.
