The LTC2185IUP is a 16-bit, 125Msps, low-power, dual-channel ADC designed for the digital processing of high-frequency, wide dynamic range signals ‌. Its main features include:

Two-channel simultaneous sampling ADC

76.8dB SNR

90dB SFDR

Low power: 370mW / 308mW / 200mW (total)

185mW / 154mW / 100mW (per channel)

Single 1.8V power supply

CMOS, DDR CMOS or DDR LVDS output

Optional input range: 1VP-P to 2VP-P

550MHz full power bandwidth S/H (sampling and holding)

Optional data output random function generator

Optional clock duty cycle stabilizer

Shutdown and nap mode

Serial SPI port for configuration

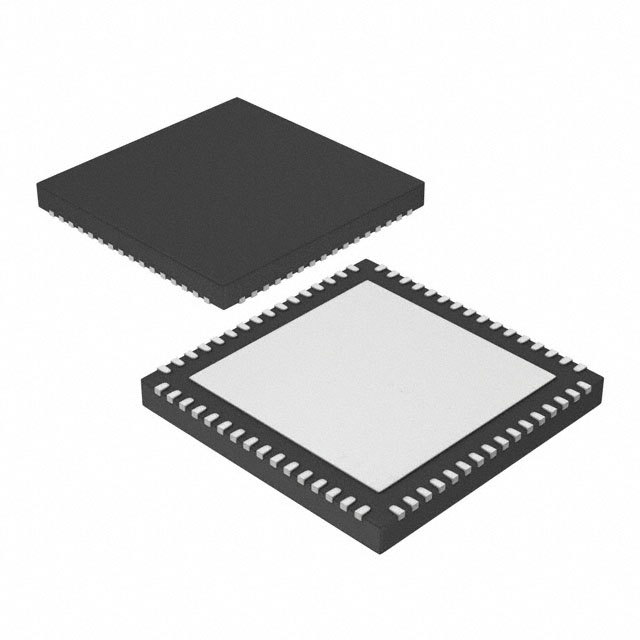

64-pin (9mm x 9mm) QFN package

Application field

The LTC2185IUP is widely used in communications, cellular base stations, software-defined radio, portable medical imaging, multi-channel data acquisition and non-destructive testing ‌.
