The R7FS3A6783A01CFL single-chip microcomputer combines low power consumption and high performance. It features an Arm®Cortex®-M4 CPU core with an operating speed of up to 48MHz, 256KB of flash memory, and 32KB of SRAM. It is highly suitable for control applications that require driving segment LCD displays. In addition, the R7FS3A6783A01CFL is also equipped with A segment LCD controller, capacitive touch sensing element, full-speed USB 2.0, 14-bit A/D converter, 12-bit D/A converter, temperature sensor and safety guarantee function.

Performance parameters

The main parameters of R7FS3A6783A01CFL include:

Core processor: ARM® Cortex®-M4

Kernel specification: 32-bit single-core

Speed: 48MHz

Connection capabilities: CANbus, EBI/EMI, I2C, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB

Peripheral devices: DMA, LCD, LVD, POR, PWM, WDT

I/O number: 36

Program storage capacity: 256KB (256K x 8)

Program memory type: Flash memory

EEPROM capacity: 8K x 8

RAM size: 32K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.6V - 5.5V

Data converter: A/D 14x14b D/A 3x8b, 3x12b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

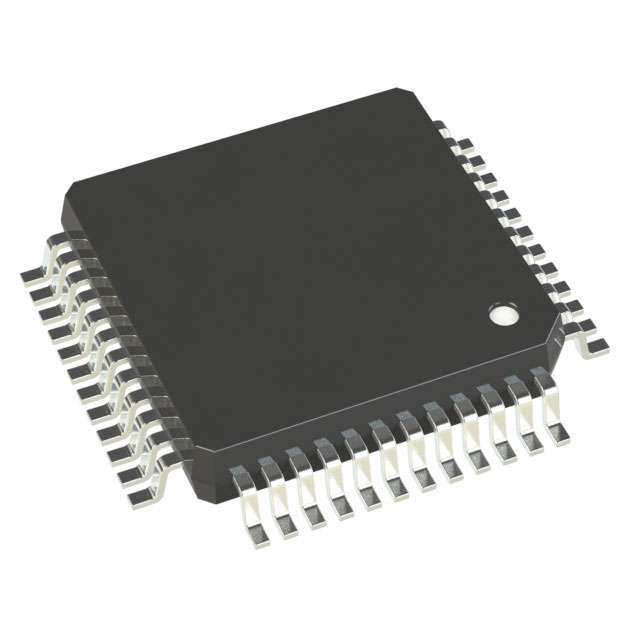

Device packaging: 48-LFQFP (7x7)

Application field

The R7FS3A6783A01CFL microcontroller is suitable for control applications that require the drive of segmented LCD displays, such as smart home, industrial control, medical equipment and other fields. Its high performance and low power consumption make it stand out in devices that need to operate for long periods and have strict requirements for energy consumption.
