The FS32K146HFT0VLHR is a 32-bit ARM Cortex-M4F automotive-grade microcontroller launched by NXP, belonging to the S32K1xx series, and packaged in a 64-LQFP (10×10mm) package. This chip is specifically designed for automotive electronics and high-reliability industrial applications, compliant with the AEC-Q100 standard, and supports the ISO 26262 ASIL-B functional safety level, making it suitable for applications such as body control, motor drive, and battery management.

Core Advantages

High-Performance Processing:

ARM Cortex-M4F core, operating at 80MHz, with support for floating-point operations (FPU) and DSP instruction sets.

1MB Flash + 128KB SRAM to meet complex algorithm and real-time control requirements.

Rich Peripheral Interfaces:

24-channel 12-bit ADC, 8-bit DAC, supporting high-precision analogue signal acquisition.

Communication interfaces including CAN FD, LIN, FlexIO, I2C, SPI, UART, etc.

Low-power design: operating voltage 2.7V to 5.5V, suitable for automotive battery power supply environments.

Technical specifications

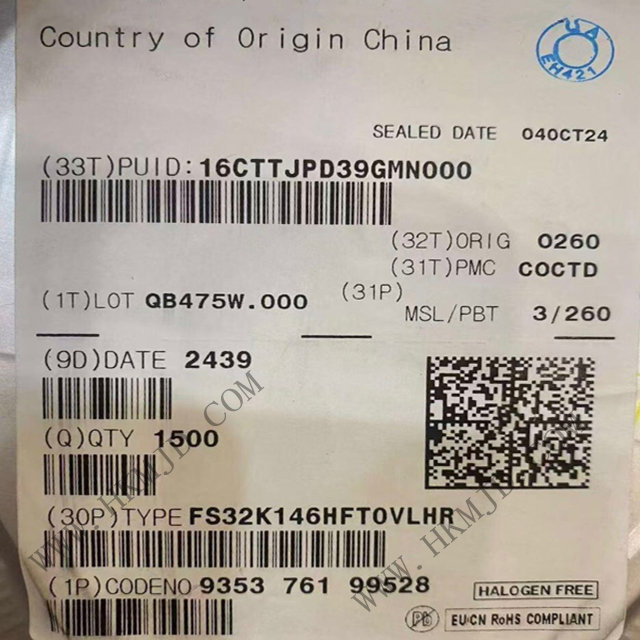

Product model: FS32K146HFT0VLHR

Product type: ARM microcontroller - MCU

Series: S32K14x

Mounting style: SMD/SMT

Package/housing: LQFP-64

Core:    ARM Cortex-M4F

Program Memory Size: 1 MB

Data Bus Width: 32-bit

ADC Resolution: 2 x 12-bit

Maximum Clock Frequency: 80 MHz

Number of I/O Pins: 58 I/O

Data RAM Size: 128 kB

Power Supply Voltage - Minimum: 2.7 V

Power Supply Voltage - Maximum: 5.5 V

Minimum operating temperature:    -40°C

Maximum operating temperature:    +105°C

Qualification:    AEC-Q100

Analogue power supply voltage:    2.7 V to 3 V, 3 V to 5.5 V

DAC resolution:    8 bits

Data RAM type:    SRAM

Data ROM size:    4 kB

Data ROM Type:    EEPROM

I/O Voltage:    3.3 V, 5 V

Interface Type:    I2C, I2S, LIN, PWM, SPI, UART

Humidity Sensitivity:    Yes

ADC Channel Count:    24 Channels

Typical Applications

Automotive electronics: Body control module (BCM), on-board charger (OBC), motor drive.

Industrial control: PLC, HMI, industrial sensor interface.

Smart home: HVAC systems, security surveillance equipment.
