The IXXK100N60B3H1 is an IGBT (Insulated Gate Bipolar Transistor), mainly used in switching applications ranging from 10 to 30kHz. This product has the following main parameters:

IGBT type: PT

Voltage - Emitter breakdown (maximum value) : 600 V

Current - Collector (Ic) (maximum value) : 200 A

Current-collector pulse (Icm) : 440 A

Vce(on) (maximum value) at different Vge and Ic: 1.8V @ 15V, 70A

Power - Maximum value: 695 W

Switching energy: 1.9mJ (on), 2mJ (off)

Input type: Standard

Gate charge: 143 nC

Td (on/off) value at 25°C: 30ns/120ns

Test conditions: 360V, 70A, 2 ohms, 15V

Reverse recovery time (trr) : 140 ns

Operating temperature: -55°C to 150°C (TJ)

Installation type: Through hole

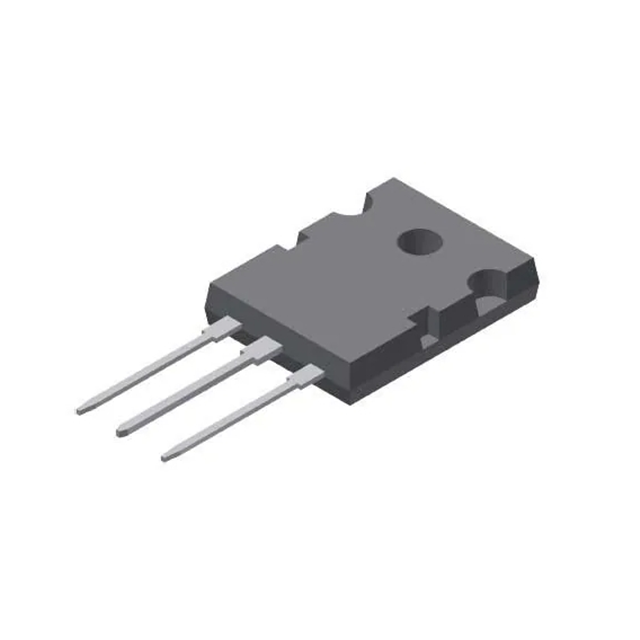

Packaging/Shell: TO-264-3

Application field

The IXXK100N60B3H1 is mainly applied in the field of power electronics, especially in power management and switch control. Due to its high performance and suitability for high-frequency switching, it is often used in circuit designs that require high efficiency and fast response ‌.
