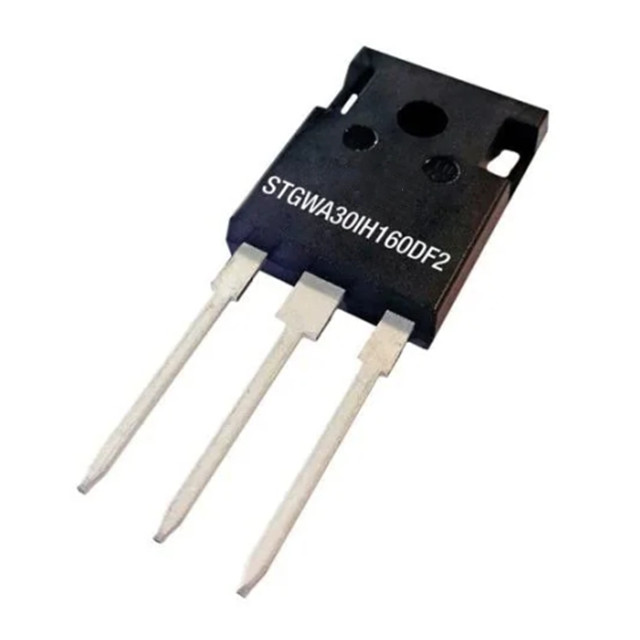

The STGWA30IH160DF2 is A 1600 V, 30 A grooved gate field cutoff soft-switching IH2 series IGBT in a TO-247 long lead package, which is optimized for soft commutating. Integrate a freewheeling diode with a low forward voltage drop. Therefore, the STGWA30IH160DF2 is specifically designed for any resonant and soft-switching applications, capable of maximizing efficiency.

Key features

Designed specifically for soft commutation

Maximum junction temperature: TJ = 175 °C

VCE(sat) = 1.77 V (typical value) @ IC = 30 A

Minimum tail current

The parameter distribution is tight.

Low thermal resistance

Extremely low voltage drop and soft recovery combined package diode

Positive VCE(sat) temperature coefficient

"Application

Induction heating

Microwave oven

Resonance converter

Basic parameters

IGBT type: Trench type field-stop

Voltage - collector and emitter breakdown (maximum value) : 1600 V

Current - collector (Ic) (maximum value) : 85 A

Current-collector pulse (Icm) : 120 A

Vce(on) (maximum value) at different Vge and Ic: 2.2V @ 15V, 30A

Power - Maximum: 395 W

Switch energy: 1.83mJ

Input type: Standard

Gate charge: 211 nC

Td (on/off) value at 25°C: -/331ns

Test conditions: 600V, 30A, 10 ohms, 15V

Operating temperature: -55°C to 175°C (TJ)

Installation type: Through hole

Packaging/Housing: TO-247-3
