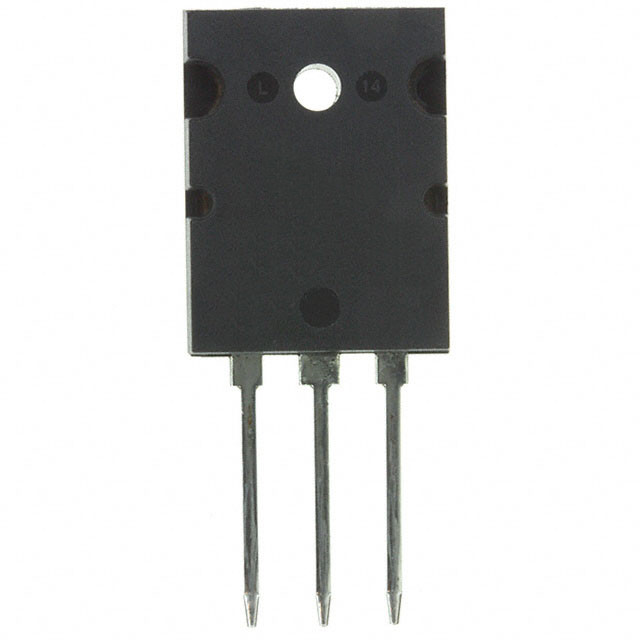

The APT80GA90LD40 is a high-speed through-switch mode IGBT device. Low Eoff is achieved through leading technological silicon design and life control processes. Reduce the trade-off of Off-VCE (ON) to make it have more superior efficiency compared with other IGBT technologies.

Technical Specification

The main specifications of APT80GA90LD40 include:

IGBT type: PT

Voltage - Emitter breakdown (maximum value) : 900 V

Current - Collector (Ic) (maximum value) : 145 A

Current-collector pulse (Icm) : 239 A

Vce(on) (maximum value) at different Vge and Ic: 3.1V @ 15V, 47A

Power - Maximum: 625 W

Switching energy: 1652µJ (on), 1389µJ (off)

Input type: Standard

Gate charge: 200 nC

Td (on/off) value at 25°C: 18ns/149ns

Test conditions: 600V, 47A, 4.7 ohms, 15V

Reverse recovery time (trr) : 25 ns

Operating temperature: -

Installation type: Through hole

Packaging/Shell: TO-264-3, TO-264AA

Application field

The APT80GA90LD40 IGBT is suitable for various power electronics applications that require high voltage and large current, and performs exceptionally well in the following fields:

Industrial control ‌ : inverters, uninterruptible power supply (UPS), etc.

New ENERGY VEHICLE ‌ : SUCH as electric vehicle motor controller, charging piles, etc.

Rail transit ‌ : such as traction drive system.

Smart grid ‌ : such as high voltage direct current transmission system.
