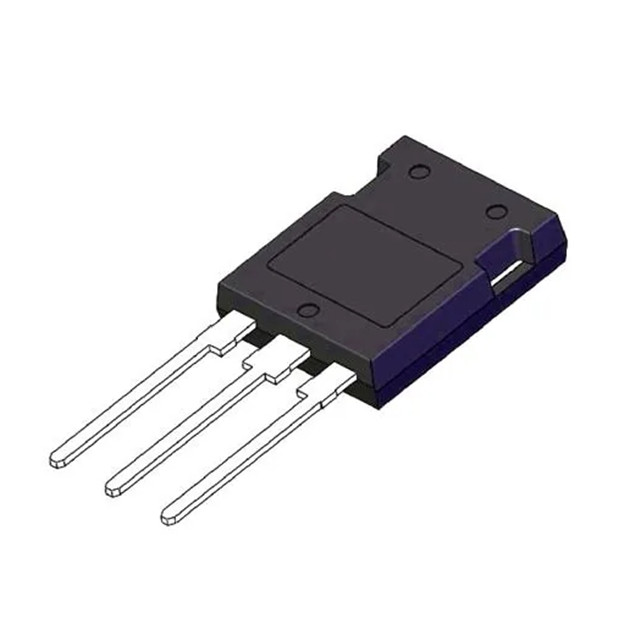

The IXA37IF1200HJ device is manufactured using the advanced GenX3 IGBT process and the extremely light through (XPT) design platform, featuring high current handling capacity, high-speed switching capability, low total energy loss and low current drop time. This IGBT device has a positive collector-emitter voltage-temperature coefficient, enabling designers to use multiple devices in parallel to meet high current requirements. Its advantages and technical specifications are as follows:

Product advantages

Hard switching capability

High power density

Low gate drive requirements

The IXA37IF1200HJ has the following main specifications:

IGBT type: PT

Voltage - Emitter breakdown (maximum value) : 1200 V

Current - Collector (Ic) (maximum value) : 58 A

Vce(on) (maximum value) at different Vge and Ic: 2.1V @ 15V, 35A

Power - Maximum: 195 W

Switching energy: 3.8mJ (on), 4.1mJ (off)

Input type: Standard

Gate charge: 106 nC

Td (on/off) value at 25°C: -

Test conditions: 600V, 35A, 27 ohms, 15V

Reverse recovery time (trr) : 350 ns

Operating temperature: -40°C to 150°C (TJ)

Installation type: Through hole

Packaging/Shell: TO-247-3

These specifications make the IXA37IF1200HJ suitable for power electronic devices that require high performance and reliability, such as inverters, motor drive and control circuits, and other application scenarios.
