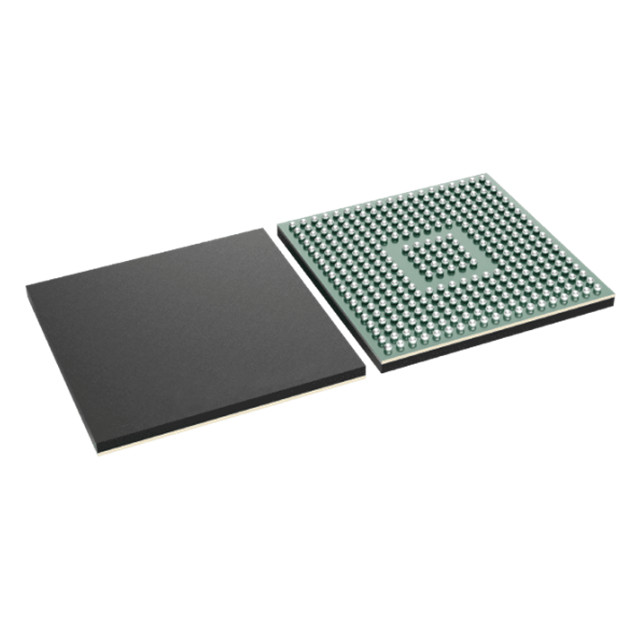

The TMS320F28374DZWTS is a powerful 32-bit floating-point microcontroller unit (MCU), specifically designed for advanced closed-loop control applications such as industrial motor drives, photovoltaic inverters and digital power supplies, electric vehicles and transportation, as well as induction and signal processing. Its technical parameters are as follows:

Technical parameters

Core processor: C28x

Kernel specification: 32-bit dual-core

Speed: 200MHz

Connection capabilities: CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, uPP, UART/USART, USB

Peripheral devices: DMA, POR, PWM, WDT

I/O number: 169

Program storage capacity: 512KB (256K x 16)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 86K x 16

Voltage-supply (Vcc/Vdd) : 1.14V to 3.47V

Data converter: A/D 24x12b D/A 3x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TJ)

Installation type: Surface mount type

Device packaging: 337-NFBGA (16x16)

The TMS320F28374DZWTS microcontroller supports the new dual-core C28x architecture, significantly enhancing system performance. In addition, integrated analog and control peripherals also allow designers to integrate control architectures and eliminate the need for multi-processors in high-end systems.
