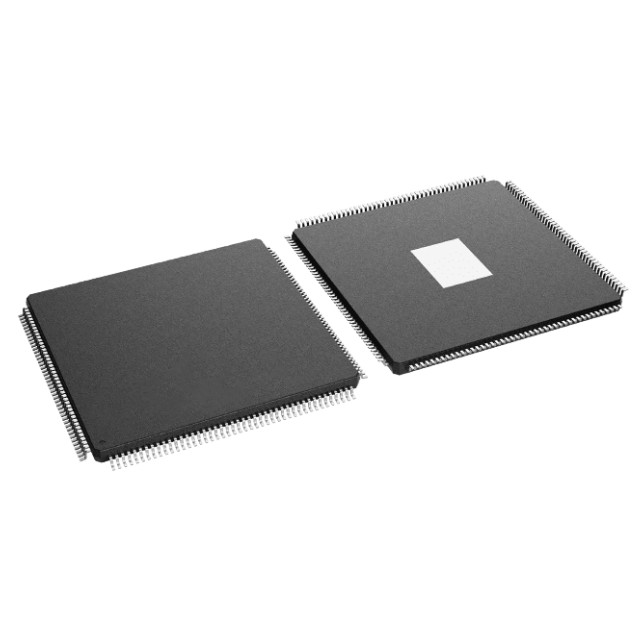

The F28P650SK6PTP microcontroller is a 32-bit microcontroller unit (MCU) in the C2000™C28x Piccolo™ series produced by TI, and is mainly used in industrial and automotive applications. Its technical parameters and applications are as follows:

Technical parameters

Core processor: C28x

Kernel specification: 32- bits

Speed: 200MHz

Connection capabilities: CANbus, I2C, SCI, SPI, UART/USART, USB

Peripherals: AES, Power Failure detection/reset, DMA, POR, PWM, WDT

I/O number: 106

Program storage capacity: 1.28MB (1.28M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 244K x 8

Voltage - Power Supply (Vcc/Vdd) : 2.8V - 3.63V

Data converter: A/D 36x12/16b SAR D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Device packaging: 176-HLQFP (24x24)

Application scenarios

The F28P650SK6PTP microcontroller is suitable for industrial and automotive applications that require efficient control and optimization of system costs, such as solar energy, energy storage, electric vehicle charging stations, robotics, and motor drivers, etc. Its high performance and low latency make it outstanding in power electronics, supporting high power density and high switching frequency applications, and compatible with IGBT, GaN and SiC technologies ‌.
