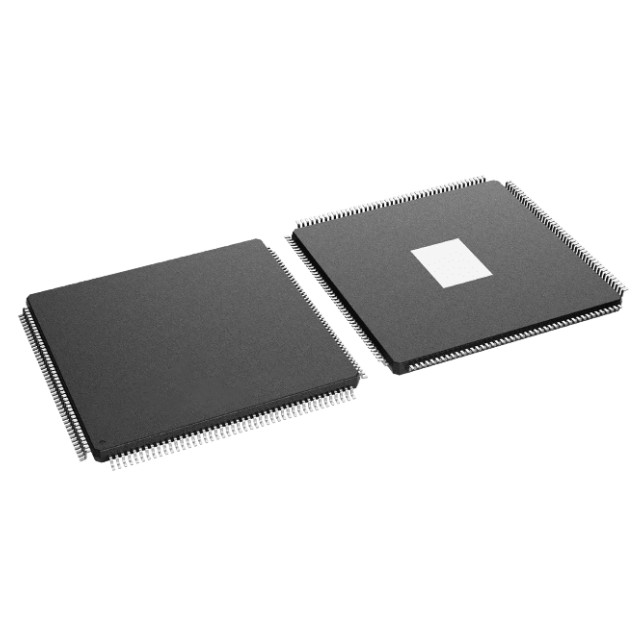

The F28P650SH7PTP microcontroller is an expandable, ultra-low latency device in the C2000™ real-time microcontroller series, designed to enhance the efficiency of power electronic equipment, including but not limited to: high power density, high switching frequency, and support for the use of GaN and SiC technologies. Its technical parameters and applications are as follows:

Technical parameters

Core processor: C28x

Kernel specification: 32- bits

Speed: 200MHz

Connection capabilities: CANbus, I2C, SCI, SPI, UART/USART, USB

Peripherals: AES, Power Failure detection/reset, DMA, POR, PWM, WDT

I/O number: 106

Program storage capacity: 768KB (768K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 244K x 8

Voltage - Power Supply (Vcc/Vdd) : 2.8V - 3.63V

Data converter: A/D 36x12/16b SAR D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Device packaging: 176-HLQFP (24x24)

Application field

The F28P650SH7PTP microcontroller is suitable for a variety of scenarios that require high-performance processing and precise control, including but not limited to

Power electronic equipment ‌ : such as industrial motor drives, traction inverters, HVAC motor control, etc.

Electric vehicle ‌ : such as powertrain, electric vehicle charging infrastructure, energy storage system, etc.

Real-time control systems ‌ : such as industrial robots, industrial machinery, machine tool control, etc.

These application fields fully leverage the high-performance processing capabilities, multi-core architecture and precise analog signal processing functions of the F28P650SH7PTP, making it an ideal choice for these areas.
