Trade Name:C2000 Real Time Microcontroller
Brand:TI
Particular Year:25+
Package:HLQFP-176
Delivery Date:New and original
Stock: 3500pcs

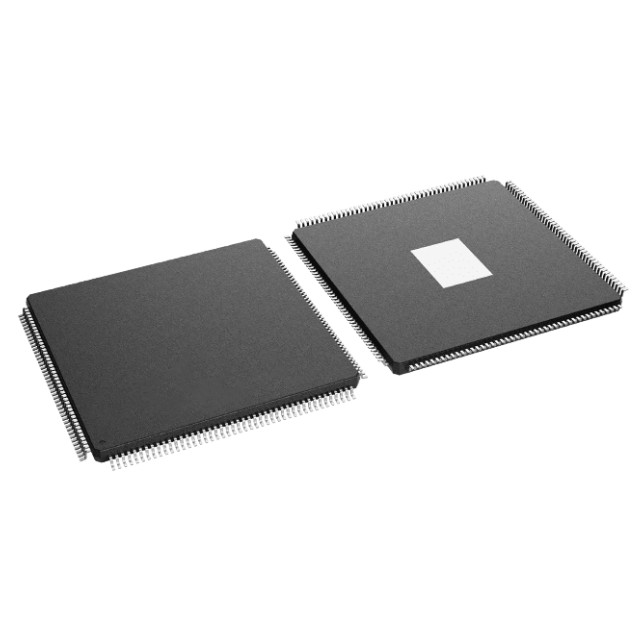

The F28P650DK6PTP microcontroller is a 32-bit C2000™ MCU featuring 2 C28x+CLA cpus, 1.28MB flash memory, 16-bit ADC, HRPWM, EtherCAT, CAN-FD, AES and lockstep functions. Its functions and technical parameters are as follows:
Features
It can contain up to three cpus: two 32-bit C28x DSP cpus and one CLA CPU, all operating at 200MHz
2. In terms of real-time signal chain performance, the total processing capacity provided is equivalent to that of devices based on 1000MHz Arm Cortex-M7
Technical parameters
Core processor: C28x
Kernel specification: 32-bit dual-core
Speed: 200MHz
Connection capabilities: CANbus, I2C, SCI, SPI, UART/USART, USB
Peripherals: AES, Power Failure detection/reset, DMA, POR, PWM, WDT
I/O number: 106
Program storage capacity: 1.28MB (1.28M x 8)
Program memory type: Flash memory
EEPROM capacity: -
RAM size: 248K x 8
Voltage - Power Supply (Vcc/Vdd) : 2.8V - 3.63V
Data converter: A/D 36x12/16b SAR D/A 2x12b
Oscillator type: Internal
Operating temperature: -40°C to 125°C (TA)
Installation type: Surface mount type
Device packaging: 176-HLQFP (24x24)
The F28P650DK6PTP is a high-performance and functionally safe microcontroller, suitable for industrial and automotive electronic applications with high requirements for processing speed and safety.
Model
Brand
Package
Quantity
Describe
TI
HLQFP-176
12500
C2000™ 32-bit MCU with 120MHz frequency, FPU, TMU, 512KB flash memory, CLA, and SDFM
TI
HLQFP-176
3000
C2000 32-bit MCU, 400MIPS, 1xC28x + 1xCLA CPU, FPU64, 1.28MB Flash, 16-bit ADC, Ethercat
TI
HLQFP-176
3000
C2000 32-bit MCU, 400MIPS, 1xC28x + 1xCLA CPU, FPU64, 768kB flash memory, 16-bit ADC
TI
LQFP-48
3500
Automotive C2000 ™ 32-bit MCU with 120MHz frequency, 256KB Flash, FPU and TMU
TI
HTQFP-48
3000
An automotive C2000™ 32-bit MCU with 120MHz frequency and 256KB flash memory
TI
VQFN-32
5000
32-bit Microcontroller - MCU Automotive C2000 32bit MCU 100MHz 256kB
