Trade Name:C2000 Real Time Microcontroller
Brand:TI
Particular Year:25+

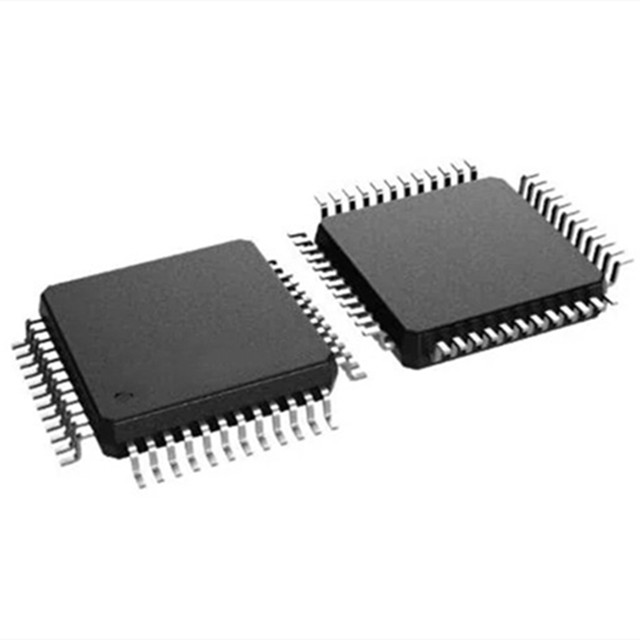

Package:LQFP-48
Delivery Date:New and original
Stock: 3500pcs
The F280037PTRQ1 is a 32-bit C2000™ real-time microcontroller with a processing speed of 120MHz. This MCU is based on TI 's 32-bit C28x DSP core and can provide high signal processing performance . Its technical parameters and applications are as follows:
Technical parameters
Core processor: C28x
Kernel specification: 32-bit single-core
Speed: 120MHz
Connection capabilities: CANbus, I2C, LINbus, SCI, SPI, UART/USART
Peripherals: AES, Power Failure detection/reset, DMA, POR, PWM, WDT
I/O number: 14
Program storage capacity: 256KB (128K x 16)
Program memory type: Flash memory
EEPROM capacity: -
RAM size: 34.5K x 16
Voltage-supply (Vcc/Vdd) : 1.14V to 3.63V
Data converter: A/D 14x12b SAR D/A 2x12b
Oscillator types: external, internal
Operating temperature: -40°C to 125°C (TA)
Grade: Automotive grade
Qualification: AEC-Q100
Installation type: Surface mount type
Device packaging: 48-LQFP (7x7)
Application field
The F280037PTRQ1 microcontroller is particularly suitable for applications that require high-efficiency power electronic devices, such as those with high power density and high switching frequency, and supports the use of GaN and SiC technologies. In addition, the microcontroller complies with Automotive application Class AEC-Q100 certification for automotive electronic systems .
