Trade Name:C2000 Real Time Microcontroller
Brand:TI
Particular Year:25+

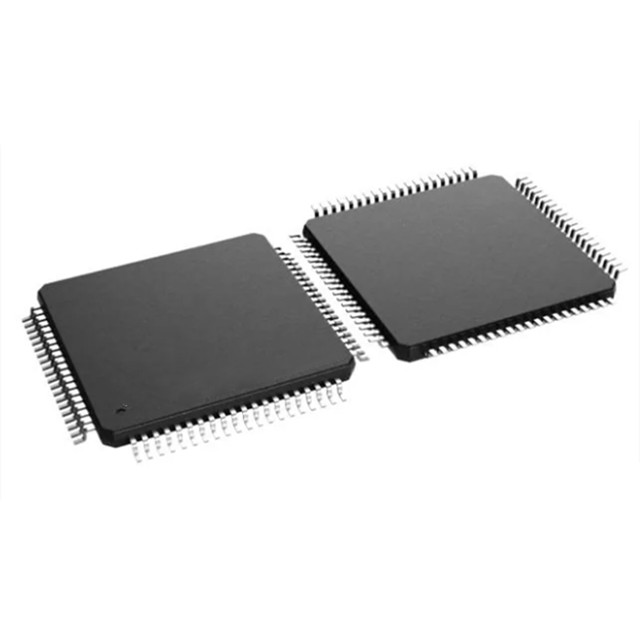

Package:LQFP-80
Delivery Date:New and original
Stock: 3000pcs
The F2800156QPNQ1 microcontroller is an automotive-grade C2000™ 32-bit MCU with CAN-FD, lock-step ASIL B, level 0 and level 1, a frequency of 100 MHZ, and 256KB flash memory. Its technical parameters are as follows:
Technical parameters
Core: C28x
Program memory size: 256 kB
Data RAM size: 36 kB
Data bus width: 32 bits
ADC resolution: 12 bits
Maximum clock frequency: 100 MHz
Number of input/output terminals: 52 I/O
Power supply voltage - minimum: 1.14V
Power supply voltage - Maximum: 3.63V
Minimum operating temperature: -40 ° C
Maximum operating temperature: + 125 ° C
Package/Box: LQFP-80
DAC resolution: 12 bits
Data Ram type: SRAM
Development kits: LAUNCHXL-F2800157, TMDSCNCD2800157
Interface types: CAN, GPIO, I2C, SPI, UART
Humidity sensitivity: Yes
Number of ADC channels: 21 channels
Timer/counter quantity: 3 x 32 bits
Working power supply voltage: 1.14V to 3.63V
Processor series: C28x
Product type: 32-bit Microcontrollers - MCU
Program memory type: Flash
The F2800156QPNQ1 device adopts a 32-bit lock-step dual C28x CPU, enabling this device to become an ASIL Class B functional safety device without excessive software overhead. The real-time control subsystem is based on TI's 32-bit C28x DSP core and can provide 120MHz signal processing performance for floating-point or fixed-point code running from on-chip flash memory or SRAM.
Model
Brand
Package
Quantity
Describe
TI
HLQFP-176
12500
C2000™ 32-bit MCU with 120MHz frequency, FPU, TMU, 512KB flash memory, CLA, and SDFM
TI
HLQFP-176
3000
C2000 32-bit MCU, 400MIPS, 1xC28x + 1xCLA CPU, FPU64, 1.28MB Flash, 16-bit ADC, Ethercat
TI
HLQFP-176
3000
C2000 32-bit MCU, 400MIPS, 1xC28x + 1xCLA CPU, FPU64, 768kB flash memory, 16-bit ADC
TI
LQFP-48
3500
Automotive C2000 ™ 32-bit MCU with 120MHz frequency, 256KB Flash, FPU and TMU
TI
HTQFP-48
3000
An automotive C2000™ 32-bit MCU with 120MHz frequency and 256KB flash memory
TI
VQFN-32
5000
32-bit Microcontroller - MCU Automotive C2000 32bit MCU 100MHz 256kB
