Trade Name:C2000 Real Time Microcontroller
Brand:TI
Particular Year:25+
Package:HTQFP-48
Delivery Date:New and original
Stock: 3000pcs

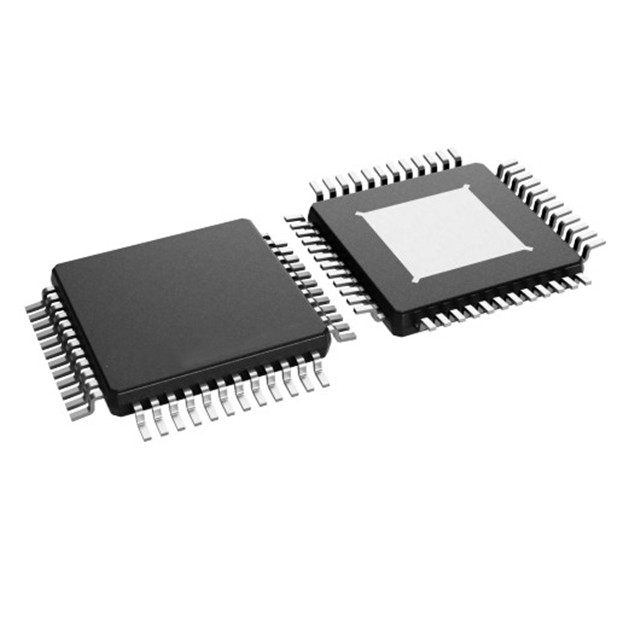

The F2800157EPHPQ1 microcontroller is an automotive-grade C2000™ 32-bit MCU with HRPWM, CAN-FD, lock-step ASIL B, Level 0 and level 1, a frequency of 120 MHZ, and 256KB flash memory. Its technologies and applications are as follows:
Technical parameters
Core processor: TMS320C28x
Kernel specification: 32-bit dual-core
Speed: 120MHz
Connection capabilities: CANbus, I2C, SCI, SPI, UART/USART
Peripherals: Power failure detection/reset, I2S, POR, PWM, WDT
I/O number: 27
Program storage capacity: 256KB (128K x 16)
Program memory type: Flash memory
EEPROM capacity: -
RAM size: 18K x 16
Voltage - Power Supply (Vcc/Vdd) : 2.8V - 3.63V
Data converter: A/D 18x12b SAR
Oscillator types: external, internal
Operating temperature: -40°C to 150°C (TA)
Grade: Automotive grade
Qualification: AEC-Q100
Installation type: Surface mount type
Device packaging: 48-HTQFP (7x7)
Application scope
HVAC compressor module
Headlight
Dc/DC converter
Inverter and motor control
On-board charger (OBC) and wireless charger
pump
Industrial motor drive
Motor control
Digital power supply
Sensing and signal conditioning
The F2800157EPHPQ1 microcontroller adopts a 32-bit lock-step dual C28x CPU, enabling this device to become an ASIL Class B functional safety device without excessive software overhead.
