The LMH3401IRMSR is an ultra-high-performance differential amplifier optimized for radio frequency (RF), intermediate frequency (IF), or high-speed time-domain applications. This device is highly suitable for DC-coupled or AC-coupled applications that require single-ended to differential conversion when driving analog-to-digital converters (ADCs). The LMH3401IRMSR generates very low second and third order distortions when operating in single-ended input-to-differential output mode or differential input-to-differential output mode.

Performance parameters

The performance parameters of LMH3401IRMSR include:

Amplifier type: Differential

Number of circuits: 1

Output type: Differential

Pressure swing rate: 18,000 V/µs

-3db bandwidth: 7 GHz

Current - Power supply: 55mA

Voltage - Span (minimum) : 3.3V

Voltage - Span (maximum value) : 5.25V

Operating temperature: -40°C to 125°C

Installation type: Surface mount type

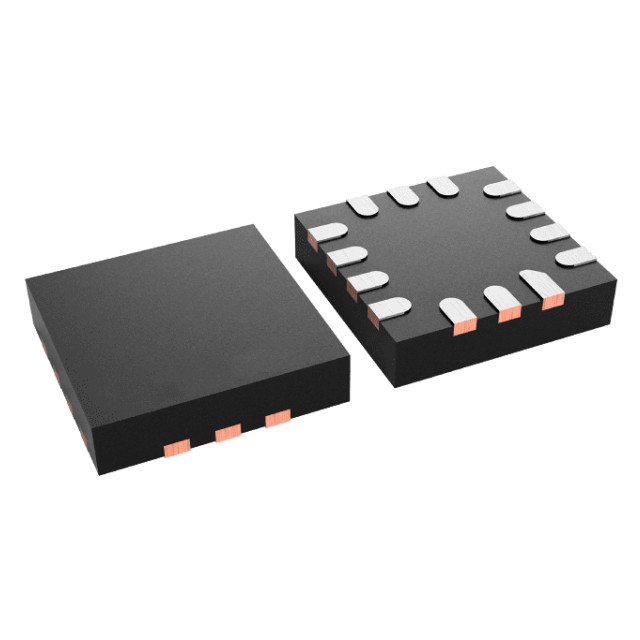

Device packaging: 14-UQFN (2.5x2.5)

Application scenarios

The LMH3401IRMSR is suitable for gigabit-per-second (GSPS) analog-to-digital converter (ADC) drivers, high-speed data acquisition ADC drivers, digital-to-analog converter (DAC) buffers, wideband gain stages, single-ended to differential converters, and level converters, etc. ‌.
