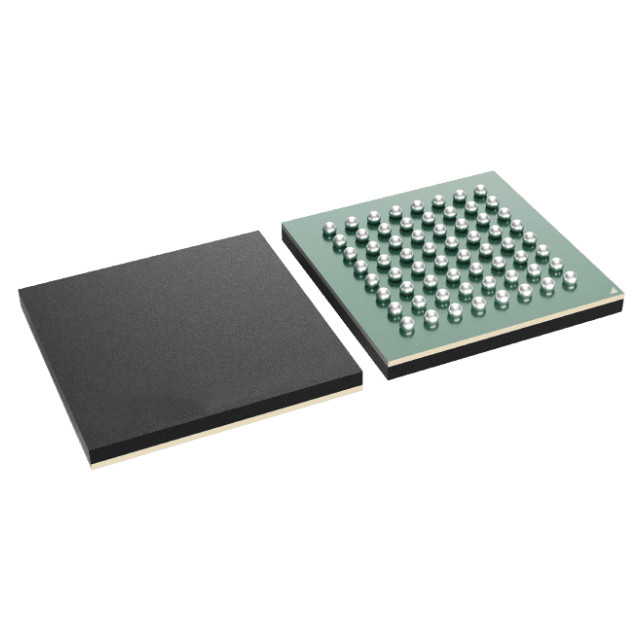

For picture reference, please see the specifications
< >

Commodity Model:ADS1298RIZXGR

Trade Name:Analogue Front End (AFE)

Brand:TI

Particular Year:25+

Package:NFBGA-64

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
ADS1298RIZXGR
Package
NFBGA-64
Describe
A 24-bit 8-channel analog front end suitable for ECG and with integrated respiratory impedance

Product Description

The ADS1298RIZXGR is a 24-bit 8-channel analog front-end (AFE) suitable for ECG and featuring integrated respiratory impedance. This device contains all the functions typically required in medical electrocardiogram (ECG) and electroencephalogram (EEG) applications, and this value must be maintained at the lowest level. With high integration and outstanding performance, the ADS1298RIZXGR can develop scalable medical instrument systems in a significantly reduced size, with significantly lower power consumption and overall cost.


Main specifications

Digit number: 24

Number of channels: 8

Power (W) : 14.1 mW

Voltage - Power supply, simulation: 2.7V to 5.5V

Voltage - Power supply, digital: 1.65V to 3.6V

Installation type: Surface mount type

Device packaging: 64-NFBGA (8x8)

Application field

The ADS1298RIZXGR is particularly suitable for ECG and EEG applications, such as the acquisition of medical electrocardiograms and electroencephalograms. It is equipped with a programmable gain amplifier (PGA), an internal reference and an on-board oscillator. Each channel has a flexible input multiplexer that can be independently connected to the internally generated signals for testing, temperature and lead disconnection detection.


Associated Products

Model

Brand

Package

Quantity

Describe

MAX30132CWA

Maxim

25-WLP

2000

2-channel, 16-bit ultra-low power programmable analog front end (AFE)

MAX30131CWA

Maxim

25-WLP

2000

1-channel, 16-bit ultra-low power programmable analog front end (AFE)

AS8510-ASSM

AMS

SSOP-20

3000

16-bit Data Acquisition Front-End IC, SSOP-20

AFE159P4RGZR

TI

VQFN-48

3000

4-channel AFE 24 drill bit 48-VQFN (7x7)

AFE1594RGZR

TI

VQFN-48

4000

4-channel AFE 24 drill bit 48-VQFN (7x7)

ADS1293CISQ

TI

WQFN-28

12000

Low-Power, 3-Channel, 24-Bit Analog Front-End for Biopotential Measurements

AD9961BCPZ

ADI

LFCSP-72

3000

10/12 bit, low power, wideband MxFE

ADPD1080WBCPZ

ADI

LFCSP-28

2500

Optical AFE for health monitoring

ADAS1000BCPZ

ADI

LFCSP-56

2500

Low-power, 5-electrode electrocardiogram (ECG) analog front-end chip

MAX2084CXL

Maxim

CSBGA-380

3000

16 channel fully integrated ultrasonic AFE with T/R switch
