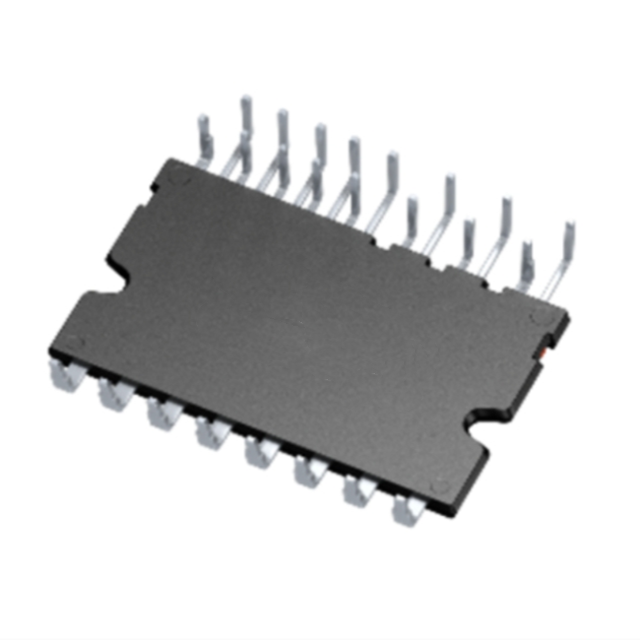

The IM06B30AC1 device is a CIPOS™ Mini 600V, 30A intelligent power module based on three-phase TRENCHSTOP™ IGBT7, featuring a DIP package and an open emitter. It offers a fully functional compact inverter solution for motor drive applications, including industrial drives, fans and pumps, HVAC, active power filters, etc., with excellent thermal conductivity.

The IM06B30AC1 module has the following specifications:

The maximum collector-emitter voltage VCEO: 600 V

Collector-emitter saturation voltage: 1.35V

Continuous collector current at 25 C: 30 A

Height: 3.1mm

Length: 36 mm

Maximum operating temperature: + 150 ° C

Minimum operating temperature: -40 ° C

Installation style: Through Hole

Number of channels: 6 channels

Package/Box: DIP-24

Packaging: Tube

Pd- Power dissipation: 33.8W

Application scenarios

The IM06B30AC1 is suitable for a variety of motor drive applications, including:

Industrial drive ‌ : Low power industrial motor drive.

Fans and Pumps ‌ : Drives for fans and pumps.

Youdaoplaceholder0 HVAC‌ : Heating, ventilation and air conditioning systems.

Active power filter ‌ : active power filter, etc. ‌.
