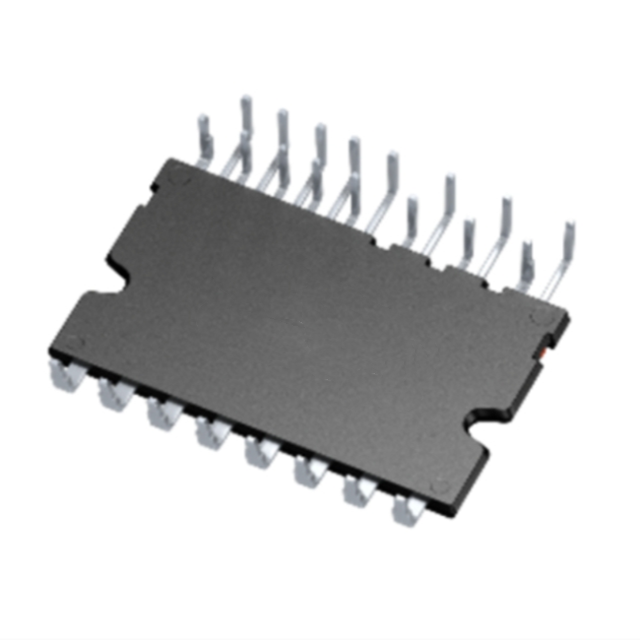

IM06B20AC1 is a CIPOS™ Mini 600V, 20A three-phase TRENCHSTOP™ IGBT7 intelligent power module with an open emitter and DIP package. This module offers a fully functional compact inverter solution for motor drive applications, including industrial drives, fans and pumps, HVAC, active power filters, etc., featuring excellent thermal conductivity.

The IM06B20AC1 module has the following specifications:

The maximum collector-emitter voltage VCEO: 600 V

Collector-emitter saturation voltage: 1.35V

Continuous collector current at 25 C: 20 A

Height: 3.1mm

Length: 36 mm

Maximum operating temperature: + 125 ° C

Minimum operating temperature: -40 ° C

Installation style: Through Hole

Number of channels: 6 channels

Package/Box: DIP-24

In addition, IM06B20AC1 is suitable for a variety of motor drive applications, including:

Youdaoplaceholder0 Industrial drive ‌ : Low-power industrial motor drive

Youdaoplaceholder0 Fans and pumps ‌ : Drive of fans and pumps

Youdaoplaceholder0 HVAC‌ : Heating, ventilation and air conditioning systems

Youdaoplaceholder0 Active power filter ‌ : Active power filtering and regulation for power systems ‌
