Trade Name:USB Interface IC
Brand:Maxim
Particular Year:25+
Package:TQFN-16
Delivery Date:New and Original
Stock: 3000pcs

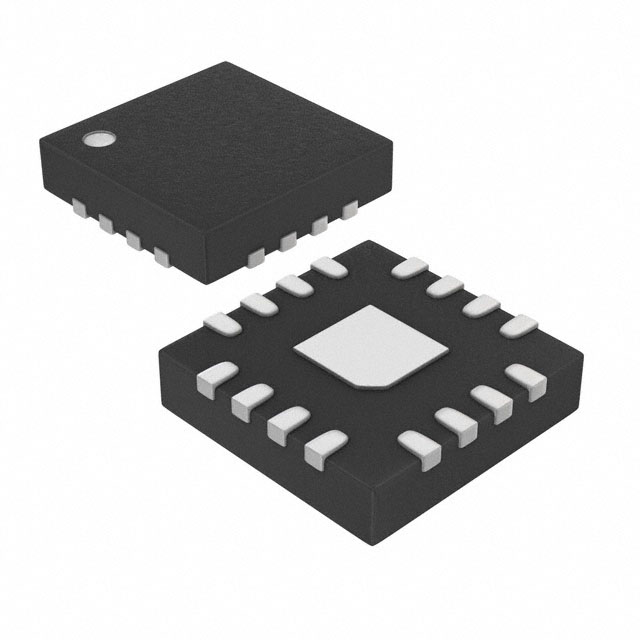

Model: MAX25410BGTEA (USB Interface IC)
Package: TQFN-16
Type: Automotive USB Power Supply Powered (USB-PD) Type-C Protector
Application: In-vehicle multimedia box applications, in-vehicle radio and navigation, automotive USB hubs
Overview:
The MAX25410BGTEA is an in-vehicle USB power supply powered (USB-PD) Type-C based protection solution for in-vehicle radio, navigation, interconnect, and USB hub/multimedia module applications. The device provides a monolithic in-vehicle USB-PD protection solution for protecting the CC1, CC2, D+ and D- signals on the USB Type-C connector.The MAX25410BGTEA also provides VCONN switching with advanced fault management capabilities without the need for a dedicated power supply to power the device.The MAX25410BGTEA is available in a small form factor, 4mm x 4mm, 16 The MAX25410BGTEA is available in a small, 4mm x 4mm, 16-pin, TQFN package that requires very few external components.
MAX25410BGTEA Product Features:
USB Type-C CC1/CC2 protection switch.
Integrated 550mΩ VCONN FET with 250mA overcurrent protection
USB 2.0 D+/D- protection switch with 1GHz bandwidth
24V CC and USB 2.0 with Short Circuit to VBUS Protection
Automatic fault detection and recovery with industry-compatible reset timing
Integrated Apple and Samsung specific charger matching resistors
Supports USB BC1.2 CDP and DCP modes
Supports China YD/T 1591-2009 standard.
Compatible with USB OTG specification and Apple CarPlay
High ESD protection (HVD+/HVD-, HVCC1/HVCC2)
±2kV human body mode
±15kV ISO 10605 air gap discharge
±8kV ISO 10605 contact discharge
±15kV IEC 61000-4-2 air gap discharge
±8kV IEC 61000-4-2 contact discharge
4mm x 4mm, 16-pin TQFN-EP package
-40°C to +105°C operating temperature range
Model
Brand
Package
Quantity
Describe
Cypress
VQFN-68
3000
EZ-PD™ CCG7DC Dual-Port USB-C Power Delivery and DC-DC Controller, VQFN-68
TI
DSBGA-50
30000
Dual-Port USB-C® Power Delivery Controller with Integrated Power Switches
Maxim
TDFN-12
3000
USB Type-A to Type-C Port Converter for Automotive Applications, TDFN-12
Maxim
TDFN-12
3000
USB Type-A to Type-C Port Converter for Automotive Applications, TDFN-12
Maxim
TQFN-16
3000
USB Dedicated Charging Port (DCP) - Automotive Hi-Speed USB Protector
