CYPD5125-40LQXIT is a high-performance USB Type-C Power Delivery (PD) controller belonging to the EZ-PD™ CCG5 series. This product is based on the ARM® Cortex®-M0 core, featuring 128KB of flash memory and 12KB of SRAM, and is packaged in a 40-pin UFQFN package. It is specifically designed for single-port or multi-port USB-C applications, supports the USB PD 3.0 standard, and is suitable for various scenarios requiring high-efficiency power management.

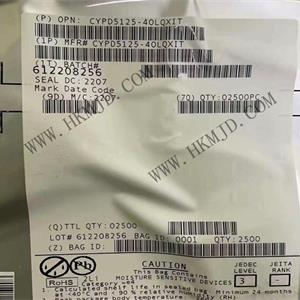

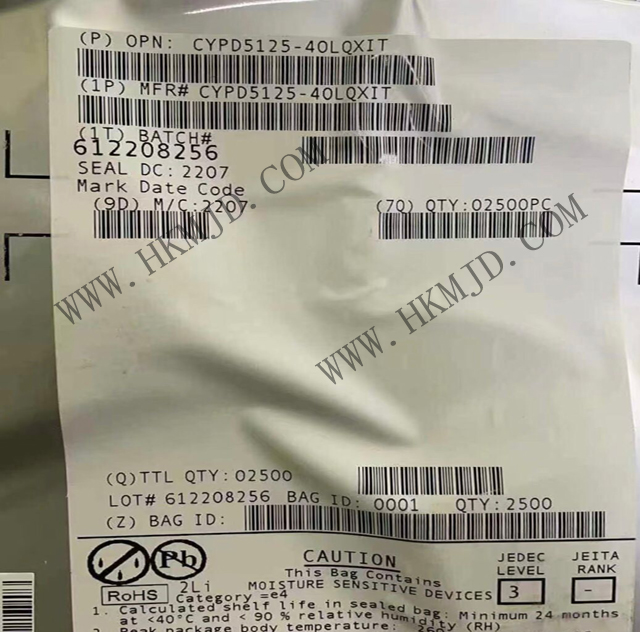

Model: CYPD5125-40LQXIT

Type: USB Type-C Controller (USB PD Protocol Chip)

Brand: Cypress Semiconductor

Package: 40-UFQFN (6×6 mm, surface mount)

Operating Temperature: -40°C to +85°C (industrial grade)

CYPD5125-40LQXIT Product Features

High Performance and Flexibility: Based on the ARM® Cortex®-M0 core with a clock speed of up to 48MHz, it offers high-performance processing capabilities. It also features 128KB of flash memory and 12KB of SRAM to meet the storage requirements of complex applications.

Rich Interface Support: Supports multiple interfaces, including I²C, SPI, UART/USART, and USB, enabling seamless communication with various devices and simplifying system design.

High-Precision Power Management: Features high-precision power management functionality, enabling efficient power transmission and precise voltage regulation, suitable for various power management application scenarios.

Multiple Protection Features: Includes multiple protection mechanisms, such as overvoltage protection, overcurrent protection, and overtemperature protection, ensuring safe operation even under abnormal conditions.

Compliant with USB PD standards: Supports the USB PD 3.0 standard, enabling fast charging and efficient power management, suitable for various devices requiring fast charging.

CYPD5125-40LQXIT Product Applications

Laptops/PCs: USB-C port control and fast charging management.

Power adapters/docking stations: Supports PD protocol charging and data transmission.

Consumer electronics: Type-C interface solutions for smartphones, tablets, and other devices.
