The MAX16972AGEB is a USB 2.0 protector designed for automotive applications that supports high-speed (480Mbps) and full speed (12Mbps) USB operation and provides high electrostatic discharge (ESD) and short circuit protection. The MAX16972AGEB integrates a series of features including fast charge protocol support, host charger port detection and USB On-Go (OTG) functionality for in-car radio, navigation, connectivity and USB hub applications such as ‌.

The main features of MAX16972AGEB include:

Equipped with the industry-leading RDS(ON), it minimizes the bus voltage drop to the greatest extent and helps the device connectors meet the USB voltage specification

31mΩ(typical value) current-limiting BUS switch, capable of driving large capacitor loads

Support reliable overvoltage and ESD protection for automotive application environments, saving external protection components

The HVBUS output provides protection against battery short circuits and ground short circuits

The HVD+ and HVD- outputs provide protection against battery short circuits and HVBUS short circuits

Two 4.0Ω (typical value) RON USB 2.0 data switches

Integrate the automatic retry function for overcurrent and short circuit

High ESD protection (HVD+, HVD-, HVBUS)

±15kV human body mode

±15kV IEC 61000-4-2 air gap discharge

±8kV IEC 61000-4-2 contact discharge

20ms fault shielding timeout period

The charging mode is automatically converted through the intelligent state machine, supporting seamless integration of devices

Integrate the dedicated charging mode for Apple iPhone 1.0A

Integrated with the dedicated charging mode for Apple iPad 2.1A

USB-IF BC1.2 Charging Downlink Port (CDP) and Dedicated Charging Interface (DCP) mode

Chinese communication industry standard YD/T 1591-209

Support USB OTG

Ec-q100 certification

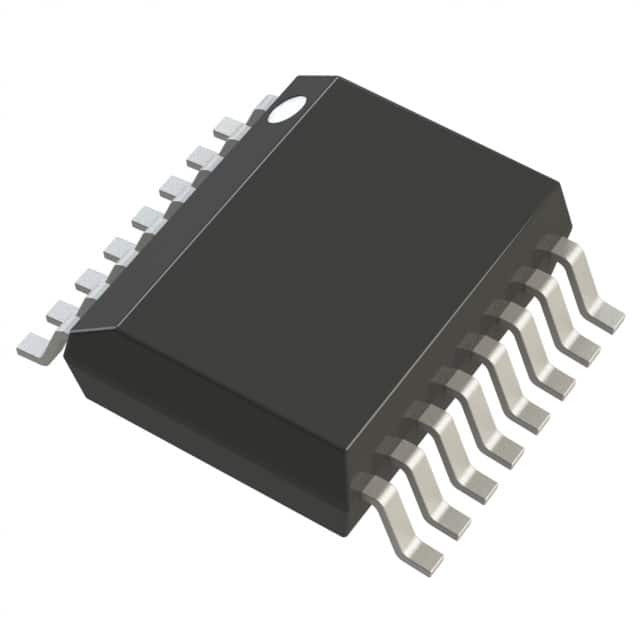

In addition, the MAX16972AGEB device adopts a 16-pin, QSOP package and operates within a temperature range of -40°C to +105°C.

Application

Vehicle-mounted networking

Vehicle-mounted radio and navigation

Telematics

USB hub
