MAX20328BEWA: USB Interface IC - USB Type-C Audio Interface IC for Portable Devices

Basic Information:

Model: MAX20328BEWA

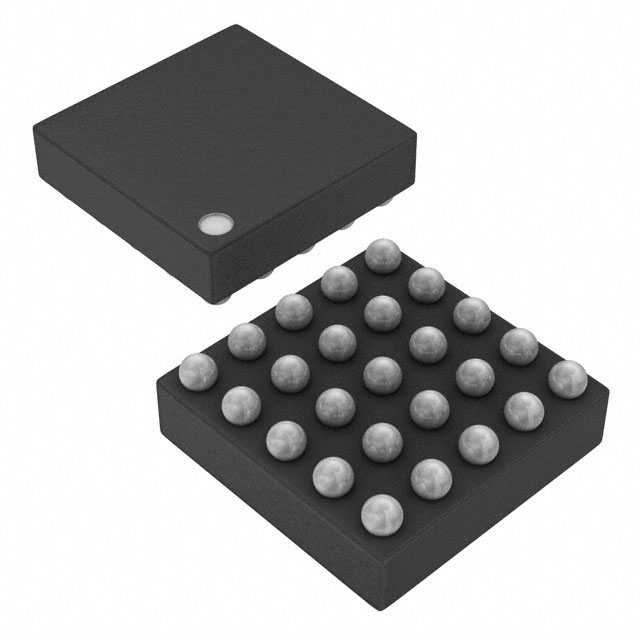

Package: WLP-25

Type: USB Type-C Audio Interface ICs

Overview: The MAX20328BEWA is a multiplexed switch for USB Type-C audio adapter accessories in a 5 x 5 array, 25-ball, 0.4mm pitch, 2.31mm x 2.31mm wafer-level package (WLP).

MAX20328BEWA Product Features:

Versatile and flexible switch configurations

High-speed USB data or audio switching path

Automatic impedance detection in audio configuration

Full manual switch control

Beyond-the-Rails™ signalling capability

Overvoltage protection for data and audio channels

Two independent OVLO circuits

OVLO thresholds can be set to 3.37V, 4.00V, 4.70V or 5.00V

Supports negative voltage audio channels

±5V audio signal (limited by positive OVLO threshold)

-100dB THD+N

-100dB PSRR @ 217Hz

High ESD and surge protection USB Type-C contacts

±12kV HBM

USB Type-C pins have ±25V surge protection on them

5 x 5 array, 0.4mm solder pitch, 2.31mm x 2.31mm WLP package

MAX20328BEWA Applications:

Flat panel devices

Smart Phones

Tablet PCs
