MAX22505GTG: USB Interface IC - ±40V, High Speed USB Port Protector, TQFN24

Basic Information

Model: MAX22505GTG

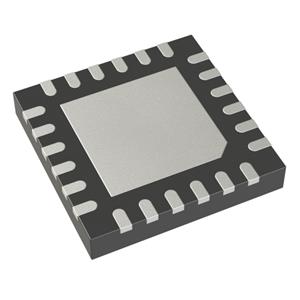

Package: TQFN-24

Type: USB Port Protector

Application: Industrial

Mounting Type: Surface Mount

Package/Shell: 24-WFQFN with bare pads

Supplier Device Package: 24-TQFN (4x4)

The MAX22505GTG is designed to protect USB ports on commercial and industrial equipment from damage caused by faulty or incorrectly connected power supplies.The USB ports are capable of providing protection from typical 24VDC or 24VAC system connections, with a maximum data line protection of ±40.7V, and power/ground line protection up to ±50V.

VBUS, ground, and connector shielding can be configured for any level of ESD, burst, and surge protection through the selection of external components. USB data D+ and D- are protected through external diode clamps to VBUS and GND, allowing for the lowest possible insertion loss while providing high ESD and burst protection.

The MAX22505GTG is available in a 24-pin, 4mm x 4mm TQFN package with bare pads and operates over the -40°C to +105°C temperature range.

MAX22505GTG Applications:

USB diagnostic port

Industrial PCs

Programmable Logic Controllers (PLCs)
