The C2000™ 32-bit microcontrollers are optimised for processing, sensing and driving to improve closed-loop performance in real-time control applications such as industrial motor drives, photovoltaic inverters and digital power, electric vehicles and transportation, motor control, and sensing and signal processing.The C2000 family consists of both advanced performance MCUs and entry-level performance MCUs.

The TMS320F28034PAGQ microcontrollers combine the performance of the C28x core and Control Law Accelerator (CLA) with highly integrated control peripherals in a low pin count device. The code of this family is compatible with older C28x-based code, while providing a high level of analogue integration.

An internal voltage regulator enables single-supply-rail operation, and the HRPWM module has been enhanced to enable dual-edge control (FM). An analogue comparator with a 10-bit internal reference has been added for direct routing to control the PWM outputs, and the ADC converts over a fixed full-scale range of 0V to 3.3V, supporting proportional operations with the VREFHI/VREFLO reference. the ADC interface has been optimised for low overhead and latency.

Product Attributes

Core Processor: C28x

Core specification: 32-bit single core

Speed: 60MHz

Connectivity: CANbus, I²C, LINbus, SCI, SPI, UART/USART

Peripherals: Undervoltage Detect/Reset, POR, PWM, WDT

Number of I/O: 33

Program memory capacity: 128KB (64K x 16)

Programme Memory Type: Flash

EEPROM Size: -

RAM Size: 10K x 16

Voltage - Supply (Vcc/Vdd): 1.71V ~ 1.995V

Data Converter: A/D 14x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

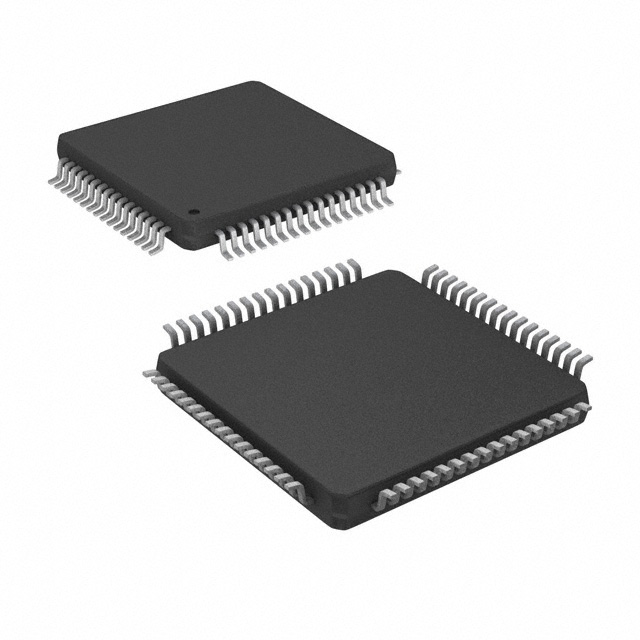

Package/Case: 64-TQFP

Supplier Device Package: 64-TQFP (10x10)

Applications

- Air conditioning outdoor units

- Drive control for automatic lift door openers and closers

- DC/DC converters

- Inverter and motor control

- On-board chargers (OBC) and wireless chargers

- Automatic sorting equipment

- Textile machines

- Welding Machines

- AC Charging Stations

- DC Charging Stations

- Electric Vehicle Charging Station Power Module

- Vehicle Wireless Charging Modules

- Energy Storage Power Conversion Systems (PCS)

- Microinverters

- Solar Power Optimiser

- String Inverters

- AC Drive Control Modules

- Linear Motor Segment Controllers

- Servo Drive Power Stage Modules

- AC Input BLDC Motor Driver

- DC Input BLDC Motor Drivers

- Industrial AC-DC

- Three-Phase UPS

- Commercial Network and Server PSUs

- Commercial Communications Power Rectifiers
