The SPC58EC80E7E0C1X microcontrollers are the first in a new family of devices replacing the SPC564Cx and SPC56ECx families.The SPC58EC80E7E0C1X builds on the foundation of the SPC564Cx and SPC56ECx families, while introducing new functionality and higher throughput, resulting in a significantly lower cost per feature and a significantly improves power consumption and performance (per MIPS). the SPC58EC80E7E0C1X hardware security module embeds two processor cores, the e200z420 and one e200z0 core in the hardware security module. the SPC58EC80E7E0C1X hardware security module embeds two processor cores, the e200z420 and one e200z0 core in the hardware security module.

Product Attributes
Core processor: e200z4
Core specification: 32-bit dual-core
Speed: 120MHz
Connectivity: CANbus, I²C, LINbus, SPI, UART/USART
Peripherals: DMA, POR, Temperature Sensor, WDT
Programme memory capacity: 4MB (4M x 8)
Programme memory type: Flash
EEPROM Size: 128K x 8
RAM Size: 512K x 8
Voltage - Supply (Vcc/Vdd): 3V ~ 5.5V
Data Converter: A/D 10/12b SAR
Oscillator Type: External, Internal
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount

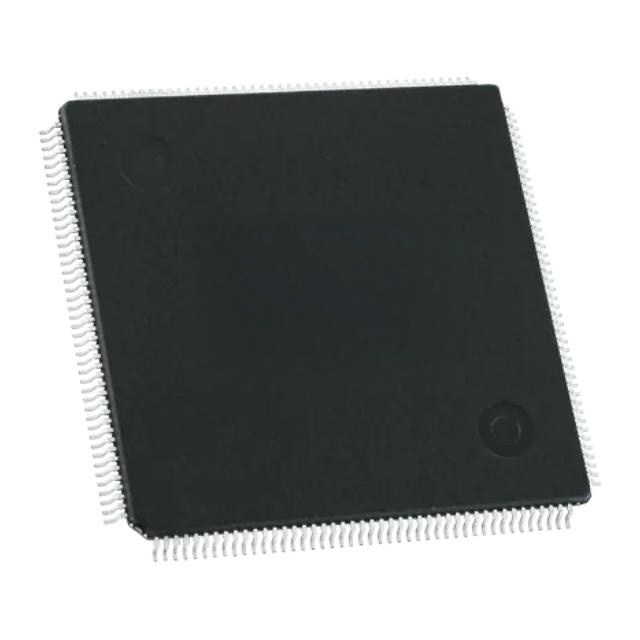

Package/Housing: 176-LQFP Exposed Pad
Supplier Device Package: 176-eLQFP (24x24)
