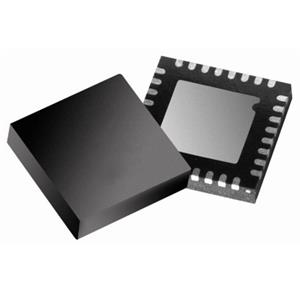

The STM32WL30K8V6 wireless microcontroller is based on the Arm Cortex®-M0+ core, featuring sub-GHz radio frequency and wideband wake-up radio frequency. It supports multiple modulation methods and is equipped with an IQ interface for custom modulation, enabling greater flexibility.

STM32WL30K8V6 is a highly integrated remote wireless solution for Internet of Things (iot) devices, which can effectively simplify the design method of products and extend battery life by reducing power consumption.

Main features

Based on the Arm Cortex-M0 + core

A single chip, with a package size as low as 5mm x 5mm, integrated:

Two radio - sub-GHz multi-modulation radio and wideband wake radio

LCD driver and LC sensor control are used for flowmeter measurement

A simple yet super flexible platform that supports multiple modulations

4-(G) FSK up to 600Kbps, 2-(G) FSK, (G) MSK, DBPSK, DSSS, OOK and ASK

The IQ interface is used for developing user modulation to enhance flexibility

Flexible radio data packet processing program

The main radio provides long-distance connection, with a receiving sensitivity of up to -132 dBm and a programmable transmission power of up to +20 dBm

Frequency coverage

159 MHz to 185 MHz

413 MHz to 479 MHz

826 MHz to 958 MHz

Low-power radio as low as 5.6 mA (Rx) and 10 mA (10 dBm Tx at full SoC current consumption)

Additional radio-specific wake with A 4.2 µA normally open receiver for system wake

Supports a wide frequency band from 100 MHz to 2.4 GHz

Extend battery life by reducing the power consumption of wireless applications (low power consumption feature)

It can achieve a battery life of 10 years and energy harvesting in many applications

By using a single platform to support multiple communication protocols (excluding LoRa), the R&D work is reduced

Optimize the bill of materials (BOM), reduce the floor space occupied by terminal devices, and lower design complexity

In addition, the STM32WL30K8V6 wireless MCU is widely used in the following scenarios:

• Asset tracking

• Wireless sensors

• Industrial monitoring and control

• Home energy management system

• Smart home and alarm systems

• Building automation

• Heat cost distributor

• Remote metering
