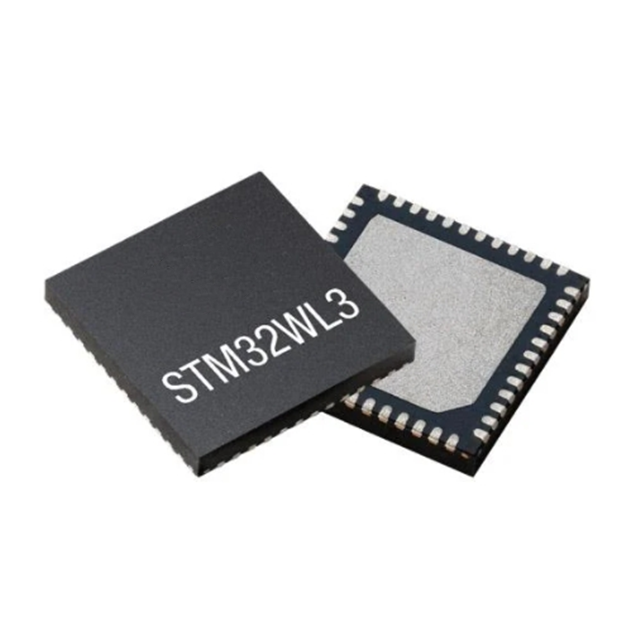

The STM32WL31CBV6 low-power Sub-GHz wireless MCU is designed to provide efficient long-distance communication for Internet of Things applications. This microcontroller is based on the Arm® Cortex®-M0 + core, operates at a frequency of up to 64 MHz, integrates sub-GHz dual radios, offers high flexibility, and reduces the bill of materials (BoM) cost.

The STM32WL31CBV6 line features 128kB flash memory and 16kB SRAM, and supports multiple modulation schemes, including 4-(G) FSK, (G) MSK, DBPSK, DSSS, OOK and ASK. The main radio provides long-distance connection, with a receiving sensitivity of up to -132 dBm and a programmable transmission power of up to +20 dBm. In addition, the dedicated wake-up radio ensures ultra-low power consumption, achieving as low as 4.2 μA in always-on mode. Thanks to the above features, the STM32WL31CBV6 MCU is highly suitable for applications such as smart home, urban infrastructure management, asset tracking, and various Internet of Things devices.

Basic parameters

Type: TxRx + MCU

Radio Frequency Series/Standard: 802.15.4

Protocols: KNX, LPWAN, Sigfox, Zigbee®

Modulation: 2-FSK, 4-FSK, 2-GFSK, 4-GFSK, ASK, DBPSK, DSSS, FSK, GFSK, OOK

Frequency: 413MHz - 479MHz, 868MHz - 958MHz

Data rate (maximum value) : 600kbps

Power - Output: 20dBm

Sensitivity: -132 DBM

Storage capacity: 128kB flash memory, 16kB SRAM

Serial interfaces: GPIO, I2C, I2S, IrDA, JTAG, PCM, PWM, SPI, UART, USART

GPIO: 17

Voltage - Power supply: 1.7V to 3.6V

Current - Reception: 4mA

Current - transmission: 8mA to 78mA

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Package/Housing: 48-VFQFN
