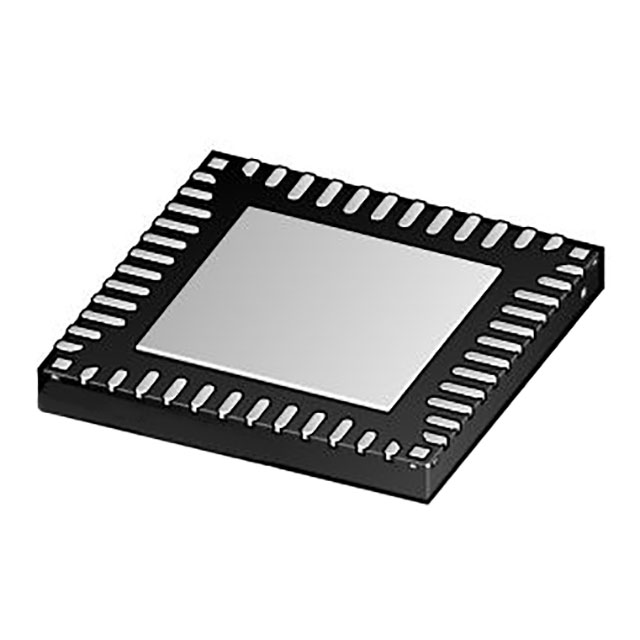

The MCXW716AMFTAR wireless microcontroller is a secure wireless MCU for compact, scalable and innovative designs. This MCU is built on the Arm® Cortex®-M33 architecture and offers a unified set of pin-compatible multi-protocol wireless options, including Matter, Thread, low-power BLUETOOTH® and Zigbee®. The MCXW716AMFTAR MCU supports innovative interoperable smart home devices, building automation sensors and controllers, as well as smart energy products.

Features of the MCXW716AMFTAR wireless subsystem:

Arm Cortex-M3 dedicated core

Dedicated 256kB flash memory and controller for certified secure NXP 15.4 and BLE firmware

88kB dedicated SRAM

Wireless modules that comply with the IEEE 802.15.4-2015 standard

Receiving sensitivity of 101dBm and 250kbit/s

ACK timing support has been enhanced in 802.15.4 hardware

Double PAN support

The 2.4GHz low-power Bluetooth (BLE) 5.0 wireless module supports up to 24 concurrent hardware connections in any master/slave combination

Remote receiving sensitivity of 106dBm and 125kbit/s

Remote receiving sensitivity of 102dBm and 500kbit/s

The receiving sensitivity is 97.5dBm and 1Mbit/s

The receiving sensitivity is 95dBm and 2Mbit/s

The programmable transmission output power can reach up to +10dBm

Data transmission rates: 125kbit/s, 500kbit/s, 1Mbit/s and 2Mbit/s

Modulation types: Level 2 FSK, GFSK, MSK, GMSK

On-chip balanced converter with single-ended bidirectional RF port

Application field

Industrial control

Intelligent lighting

Building security and monitoring

Building safety detector

Temperature control

Heat measurement

Consumer electronics

Home control, access control and automation

Intelligent sensor

Smart curtains

Smart door lock

Thermostat

Air conditioner (AC

Networked small household appliances
