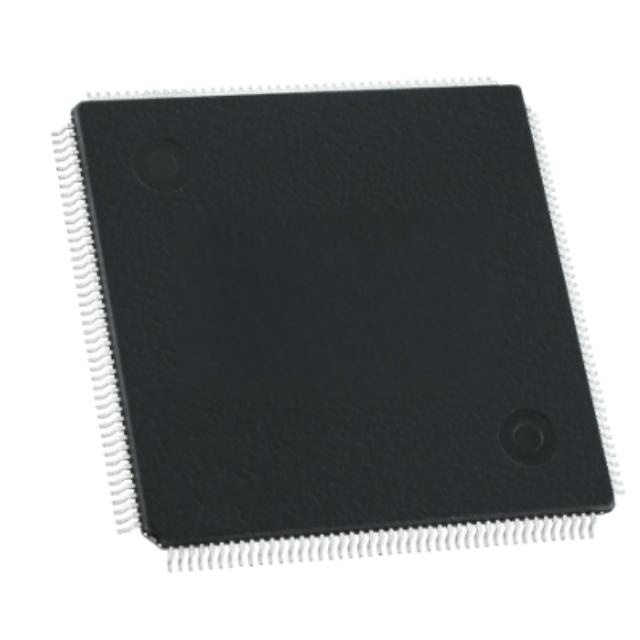

The SPC58EC74E7E0C1X microcontrollers are the first in a new family of devices replacing the SPC564Cx and SPC56ECx families.The SPC58EC74E7E0C1X builds on the SPC564Cx and SPC56ECx families while introducing new features and higher throughput, resulting in a significantly lower cost per feature and a significantly improved power consumption and performance (MIPS/s). Power consumption and performance (MIPS/mW). Two processor cores, e200z420 and one e200z0 core, are embedded in the SPC58EC74E7E0C1X hardware security module.

Product Attributes

Core processor: e200z4

Core specification: 32-bit dual core

Speed: 120MHz

Connectivity: CANbus, I²C, LINbus, SPI, UART/USART

Peripherals: DMA, POR, Temperature Sensor, WDT

Programme memory capacity: 3MB (3M x 8)

Programme memory type: Flash

EEPROM Size: 128K x 8

RAM Size: 512K x 8

Voltage - Supply (Vcc/Vdd): 3V ~ 5.5V

Data Converter: A/D 10/12b SAR

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Housing: 176-LQFP Exposed Pad

Supplier Device Package: 176-eLQFP (24x24)
