The SPC564L54L5CBFSY family of automotive controllers has an advanced and cost-effective main processor core that is compliant with the Power Architecture embedded class. Running at up to 120 MHz, it provides high-performance processing and is optimised for low power consumption. It takes full advantage of the development infrastructure available for today's Power Architecture devices and supports software drivers, operating systems, and configuration code to assist with user implementation.

The SPC564L54L5CBFSY is a 32-bit Power Architecture MCU for automotive chassis and safety applications.

Product Attributes

Product Category: 32-bit Microcontrollers - MCUs

Family: SPC564L54L5

Mounting Style: SMD/SMT

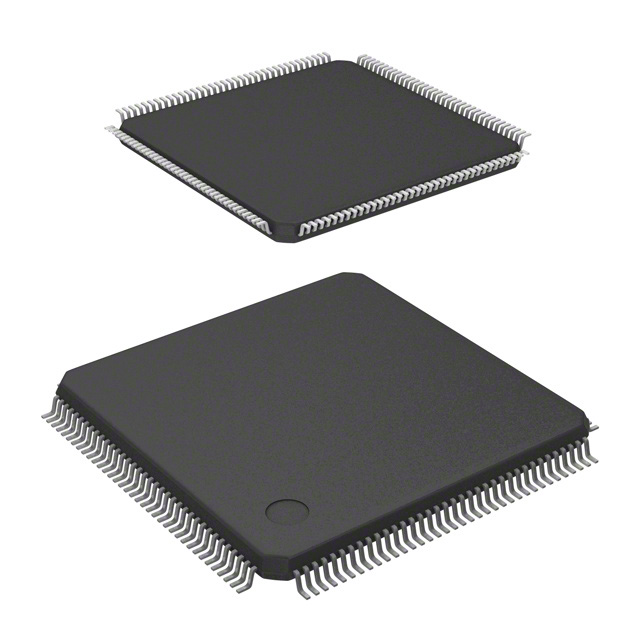

Package / Case: LQFP-144

Core: e200z4

Programme memory size: 768 kB

Data RAM size: 96 kB

Data bus width: 32 bit

ADC resolution: 12 bit

Maximum clock frequency: 120 MHz

Number of inputs/outputs: 57 I/Os

Supply voltage - min: 3 V

Supply voltage - max: 3.63 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Qualification: AEC-Q100

Analogue supply voltage: 3 V to 3.6 V, 4.5 V to 5.5 V

Data Ram Type: SRAM

Data Rom Type: EEPROM

I/O Voltage: 3 V to 3.63 V

Interface Type: DSPI, FlexCAN, FlexRay, LINFlexD

Number of ADC channels: 32 Channel

Number of timers/counters: 3 Timer

Processor Family: SPC564L

Product: SoC

Programme Memory Type: Flash

Watchdog Timer: Watchdog Timer
