The EFM32PG26B301F1024IL136-B is an ARM Cortex-M33-based microcontroller unit (MCU) with a frequency of up to 80 MHz, designed for low-power, high-performance iot applications. The following are its key parameters:

Core processor: ARM® Cortex®-M33F

Kernel specification: 32-bit

Speed: 80MHz

Connection capabilities: I2C, IrDA, smart card, SPI, UART/USART

Peripherals: Encryption - AES, DMA, I2S, numeric keypad, LCD, BOR.PWM, SHA, temperature sensor, TRNG, WDT

I/O count: 64

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 256K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.71V to 3.8V

Data converter: A/D 4x16b; D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C

Installation type: Surface mount type

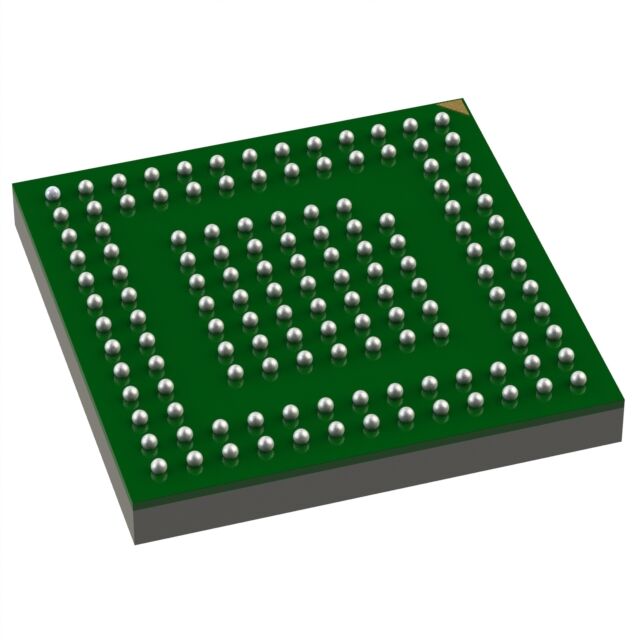

Package: 136-BGA (7x7)

Connect to peripheral devices

The EFM32PG26B301F1024IL136-B features 64 universal I/O pins, a 12/16/20-bit analog-to-digital converter, a dual-channel digital-to-analog converter, and an I2C interface. Supports the SMBus protocol and integrates a watchdog timer.

Target application

The EFM32PG26B301F1024IL136-B 32-bit MCU is highly suitable for low-power and high-performance applications, including embedded Internet of Things (IoT), smart homes, smart cities, as well as industrial and general-purpose uses.
