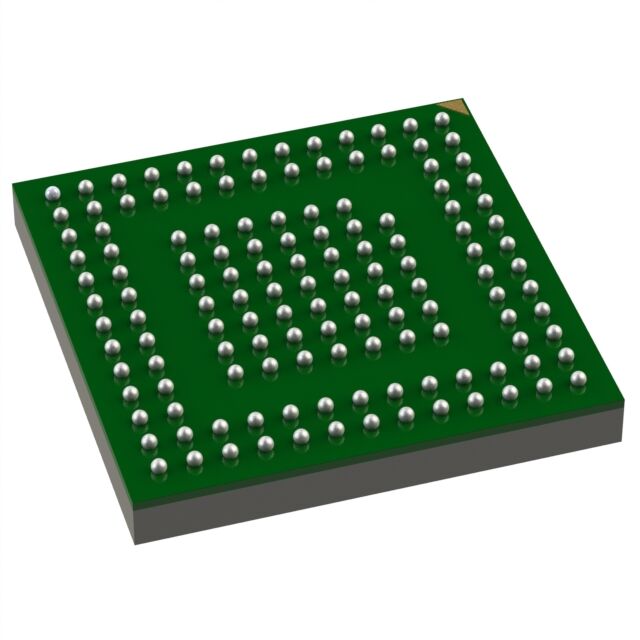

The EFM32PG26B101F512IL136-B is a 32-bit microcontroller (MCU) manufactured by (SILICON). It uses an ARM Cortex-M33 core and runs at up to 80 MHz, making it ideal for various battery-powered or power-sensitive applications. The EFM32PG26B101F512IL136-B device offers a combination of 512 kB flash memory, 128 kB RAM, 64 GPIOs, a 160-segment LCD controller, a 16-channel ADC (with the option of 12 or 16-bit resolution), two analog comparators, and a 2-channel setup VDAC and multiple communication interfaces, it adopts a compact BGA136 package and has excellent security with the help of Secure Vault™.

General specifications

Low-power system-on-chip

High-performance 32-bit 80 MHz ARM Cortex®-M33 with DSP instructions and floating-point units for efficient signal processing

Up to 512kB of flash program memory

The RAM data memory is up to 128 kB

Matrix-vector processors for AI/ML acceleration

Low system energy consumption

42.8 μA/MHz (Active mode (EM0), at 80 MHz)

1.4 μA EM2 deep sleep current (16 kB RAM retained and running RTC from LFRCO)

Wide working range

1.71-3.8V single power supply

-40 to +125 °C

Package: BGA136 7mm x 7mm x 0.82mm

Application scenarios

Smart home

Smart City

"Industry

General-purpose

IoT
