The EFM32PG26B501F3200IL136-B is an ARM Cortex-M33-based microcontroller (MCU) with speeds up to 80 MHz. The following are its core features:

The software is compatible with MCU versions

Wireless SoC platform

80MHz ARM Cortex-M33 with LCD controller

Fast inference at the edge with low power consumption

Equipped with a hardware AI/ML accelerator

It can achieve low-power consumption and high-performance embedded Internet of Things applications

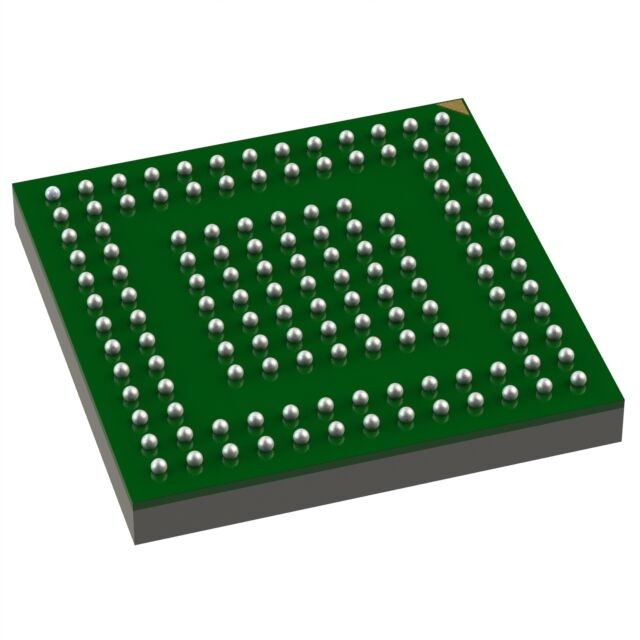

The EFM32PG26B501F3200IL136-B MCU features 3200 kB of flash memory, 512 kB of RAM, 64 GPIOs, a 160-segment LCD controller, a 16-channel ADC (with the option of 12 or 16-bit resolution), two analog comparators, and a 2 Channel VDAC and multiple communication interfaces, it adopts a compact BGA136 package and has excellent security with the help of Secure Vault™.

General specifications

The peripheral devices of EFM32PG26B501F3200IL136-B MCU include:

Analog-to-digital converter (IADC

12, 16 or 20-bit output

Some OPNs support high-speed (up to 2Msps) and high-precision (16-bit ENOB) modes

Two analog comparators (ACMP)

Dual-channel digital-to-analog converter (VDAC

Up to 64 general-purpose I/O pins, featuring output state preservation and asynchronous interrupt functions

Eight-channel DMA controller

20-channel peripheral Reflector system (PRS

Six 16-bit timers/counters with three comparison/capture /PWM channels

Four 32-bit timers/counters with three comparison/capture /PWM channels

Two 32-bit real-time counters (SYSRTC/BURTC)

A 24-bit low-power timer for generating waveforms

16-bit pulse counter with asynchronous operation

Two watchdog timers

Four enhanced universal synchronous/asynchronous receivers/transmitters

Four I2C interfaces, supporting SMBus

Low-frequency RC oscillator with precision mode, can replace 32kHz sleep crystals

Integrated low-power LCD controller, supporting 4x40 segments

6x8 matrix, for keyboard scanner

The bare metal temperature sensor has an accuracy of ±1.5°C after single-point calibration

The EFM32PG26B501F3200IL136-B is suitable for fields such as smart home, industrial control, and medical equipment. It particularly supports edge AI/ML inference, with an inference speed increase of 8 times and power consumption reduced to 1/6.
