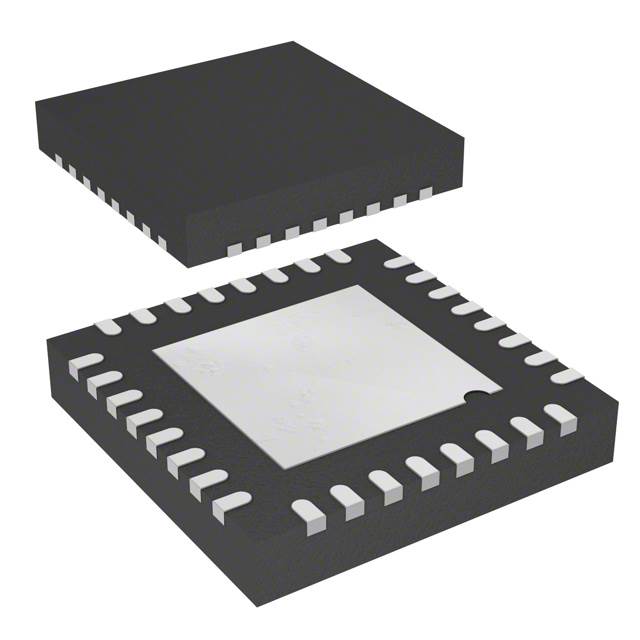

STM8AF6266UCY automotive 8-bit microcontrollers offer from 16 to 32 Kbyte of Flash program memory and integrated true data EEPROM.

Device performance is ensured by a clock frequency of up to 16 MHz CPU and enhanced characteristics which include robust I/O, independent watchdogs (with a separate clock source), and a clock security system.

Features

Advanced STM8A core with Harvard architecture and 3-stage pipeline

Average 1.6 cycles/instruction resulting in 10 MIPS at 16 MHz fCPU for industry standard benchmark

Memories

Flash Program memory: 16 to 32 Kbyte Flash; data retention 20 years at 55 °C after 1 kcycle

Data memory: 0.5 to 1 Kbyte true data EEPROM; endurance 300 kcycle

RAM: 2 Kbyte

Clock management

Low-power crystal resonator oscillator with external clock input

Internal, user-trimmable 16 MHz RC and low-power 128 kHz RC oscillators

Clock security system with clock monitor

Reset and supply management

Wait/auto-wakeup/Halt low-power modes with user definable clock gating

Low consumption power-on and powerdown reset

Interrupt management

Nested interrupt controller with 32 vectors

Up to 34 external interrupts on 5 vectors

Up to 38 user pins including 10 HS I/Os

Highly robust I/O design, immune against current injection

Operating temperature up to 150 °C
