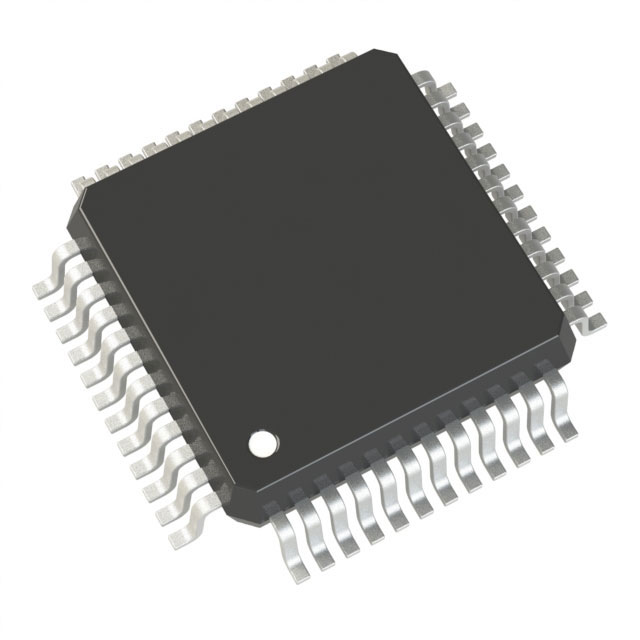

Commodity Model:S912ZVMBA4F0VLF

Trade Name:S912ZVMBA4F0VLF

Data Manual:S912ZVMBA4F0VLF.pdf

Brand:NXP

Particular Year:23+

Package:48-LQFP

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
S912ZVMBA4F0VLF
Package
48-LQFP
Describe
S12Z S12 MagniV Microcontroller IC 16-bit 32MHz 48KB (48K x 8) Flash 48-LQFP (7x7)

Product Description

The S912ZVMBA4F0VLF combines an ADC that is synchronised to the PWM signal using a programmable trigger unit (PTU), and integrates a number of high-voltage analogue modules including a voltage regulator (VREG), a gate driver unit (GDU), and a local interconnect network (LIN) physical layer. These features enable a fully integrated single-chip solution to drive external power MOSFETs for motor drive applications.

The S912ZVMBA4F0VLF includes Error Correction Code (ECC) in RAM, Flash and EEPROM for diagnostics or data storage, a fast analogue-to-digital converter (ADC), and a frequency-modulated Phase-Locked Loop (PLL) for improved EMC performance. The S912ZVMBA4F0VLF offers all the benefits and efficiencies of a 16-bit MCU while retaining the low cost, low power, EMC, and code size efficiencies that existing S12 family users currently enjoy. In addition to the peripheral module I/O ports, there are other I/O ports with interrupt capability that can be woken up from stop or wait mode.

Product Attributes
Core Processor: S12Z
Core specification: 16-bit
Speed: 32MHz
Connectivity: LINbus, SCI, SPI
Peripherals: DMA, LVD, POR, PWM, WDT
Number of I/O: 15
Program memory capacity: 48KB (48K x 8)
Program memory type: Flash
EEPROM Size: 512 x 8
RAM Size: 4K x 8
Voltage - Supply (Vcc/Vdd): 3.5V ~ 40V
Data Converter: A/D 5x10b
Oscillator Type: Internal
Operating Temperature: -40°C ~ 105°C (TA)
Mounting Type: Surface Mount
Package/Case: 48-LQFP
Supplier Device Package: 48-LQFP (7x7)

Applications
• Anti-pinch window lifters
• Sunroof
• Automatic doors
• Electric liftgate
• Seat adjustment
• Valves (powertrain)
• Seat belt pretensioners
