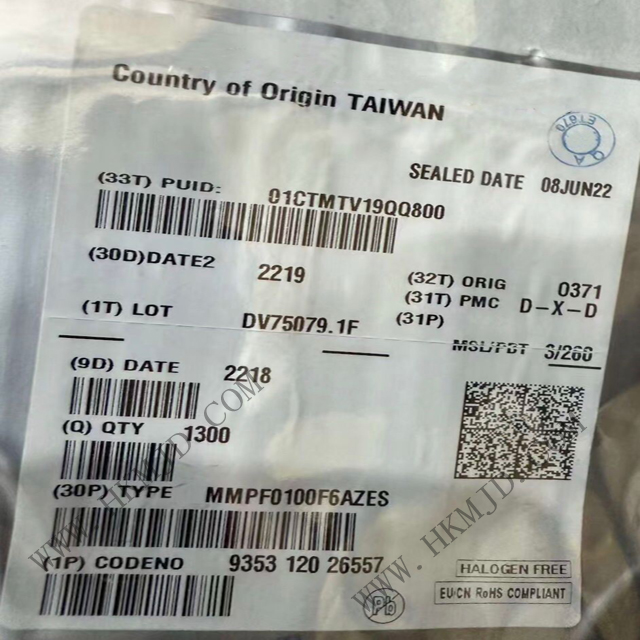

For picture reference, please see the specifications
< >

Commodity Model:MMPF0100F6AZES

Trade Name:Professional Power Management (PMIC)

Brand:NXP

Particular Year:22+

Package:QFN56

Delivery Date:New and Original

Stock: 1500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
MMPF0100F6AZES
Package
QFN56
Describe
Power Management IC, i.MX6, pre-prog ,4/6 buck, 6 LDO, 1 boost, QFN 56

Product Description

The MMPF0100F6AZES is a 14-channel configurable power management IC (PMIC) packaged in a 56-QFN-EP (8×8mm) package, specifically designed for the i.MX 6 series application processors. It is suitable for applications such as in-vehicle infotainment systems, industrial control, and consumer electronics. The chip integrates six DC/DC buck converters, seven LDO regulators, and one boost converter, providing a complete power management solution that significantly simplifies system design and reduces costs.


MMPF0100F6AZES Key Features

6 DC/DC buck converters (output current up to 4.5A)

7 LDO linear regulators (supporting different voltage levels)

1 boost converter (5V to 5.15V, 600mA)

Output voltage and timing programmable via I²C interface to accommodate different application requirements

Supports OTP (one-time programmable) for easy mass production customisation

Operating temperature: -40°C to +105°C, compliant with AEC-Q100 automotive-grade standards

Multiple protection mechanisms: overcurrent, over-temperature, and short-circuit protection


MMPF0100F6AZES Key Features

Power Output Configuration

SW1A/B/C: 0.3V to 1.875V (4.5A or 2.5A + 2.0A configuration)

SW3A/B: 0.4V to 3.3V (2.5A or 1.25A + 1.25A configuration)

VGEN1~VGEN6: LDO output (0.8V~3.3V, 100mA~350mA)

VSNVS: 1.0V~3.0V (400µA, supports RTC power supply).

Low-power design

Extremely low power consumption in standby mode, suitable for battery-powered devices.

Programmable soft start to reduce inrush current.

Optimised for automotive and industrial applications

Supports in-vehicle infotainment systems (IVI), industrial PLCs, medical devices, etc.


MMPF0100F6AZES Key Parameters

Input voltage range: 2.8V to 4.5V

Output voltage range: 0.3V to 5.15V (programmable)

DC/DC converters: 6 (maximum 4.5A)

LDO regulators: 7 (100mA to 350mA)

Boost converter: 1 (5V to 5.15V, 600mA)

Package: 56-QFN-EP (8×8mm)

Operating temperature: -40°C to +105°C

Interface: I²C


MMPF0100F6AZES Applications

Industrial control

Surveillance

Electronic cockpit

Automotive electronics

Networked broadcasting
