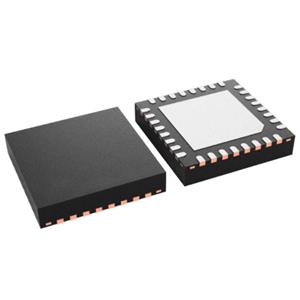

MSPM0L1227SRHBR microcontrollers (MCUs) is highly integrated, ultra-low-power 32-bit MSPM0 MCU based on the Arm Cortex-M0+ 32-bit core platform, operating at up to 32MHz frequency. These MCUs offer a blend of cost optimization and design flexibility for applications requiring 128KB to 256KB of flash memory in small packages (down to 4mm x 4mm) or high pin count packages (up to 80 pins). These devices include a VBAT backup island, an optional segmented LCD controller, cybersecurity enablers, and high-performance integrated analog, and provide excellent low-power performance across the operating temperature range.

Feature Of MSPM0L1227SRHBR

Core

Arm 32-bit Cortex-M0+ CPU with memory protection unit, frequency up to 32MHz

PSA-L1 Certified

Operating characteristics

Extended temperature: –40°C up to 125°C

Wide supply voltage range: 1.62V to 3.6V

Memories

Up to 256KB of flash memory with ECC

Dual-bank with address swap with OTA updates

32KB of SRAM with ECC or parity

32B backup memory(1)

High-performance analog peripherals

12-bit 1.68Msps analog-to-digital converter (ADC), up to 26 external channels

Configurable 1.4V or 2.5V internal shared voltage reference (VREF)

Comparator (COMP) with 8-bit reference DAC

Integrated temperature sensor

User interface

Ultra-low power segmented LCD controller supporting up to 8×51 and 4×55 LCD displays(2)

Optimized low-power modes

RUN:106µA/MHz (CoreMark)

STOP: 54µA at 32kHz

STANDBY1 1.2µA (VDD), 1.1µA (VBAT) with 32kHz, LFXT, RTC, and SRAM and registers fully retained

SHUTDOWN: 80nA (VDD), 1.1µA (VBAT) with 32kHz, LFXT, RTC, and I/O wake-up

Intelligent digital peripherals

7-channel DMA controller

15-channel event fabric signaling system

Six timers supporting up to 18 PWM outputs, all operational down to STANDBY mode

One 16-bit advanced timer with deadband

One 32-bit general-purpose timer

Four 16-bit general-purpose timers

Window-watchdog timer (WWDT)

Independent watchdog timer (IWDT) residing in the VBAT island

Applications Of MSPM0L1227SRHBR

Grid infrastructure

Factory automation and control

Appliances

Medical and healthcare

Test and measurement
