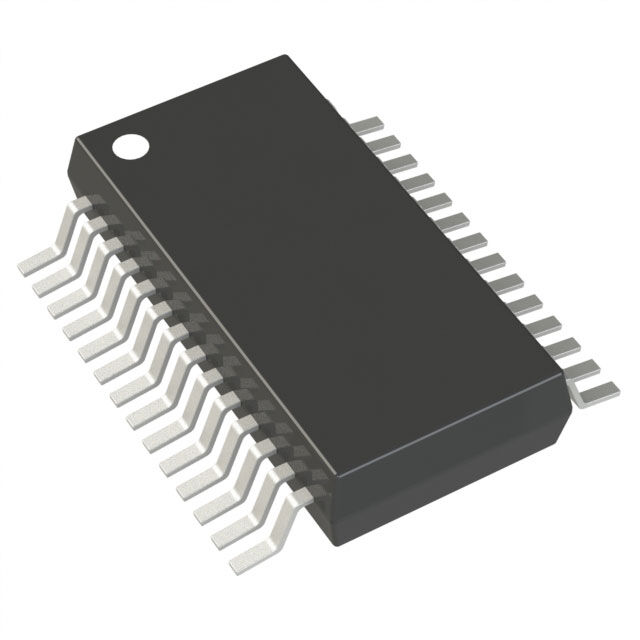

MSPM0G3505SDGS28R: Mixed Signal Microcontroller with CAN-FD Interface - 32-bit ARM® Cortex®-M0+ Microcontroller IC, VSSOP-28

Model No.: MSPM0G3505SDGS28R

Package: VSSOP-28

Type: 32-bit Microcontroller - MCU

MSPM0G3505SDGS28R Specifications:

Product Category: ARM Microcontroller - MCU

Mounting Style: SMD/SMT

Package / Case: VSSOP-28

Core: ARM Cortex M0+

Program Memory Size: 32 kB

Data Bus Width: 32 bit

ADC Resolution: 12 bit

Maximum Clock Frequency: 80 MHz

Inputs / Number of outputs: 24 I/O

Data RAM size: 16 kB

Supply voltage - min: 1.62 V

Supply voltage - max: 3.6 V

Minimum operating temperature: - 40 °C

Maximum operating temperature: + 125 °C

DAC resolution: 12 bit

Interface types: CAN, I2C, SPI, UART

Number of ADC channels: 11 Channel

Number of timers/counters Operating supply voltage: 7 Timers : 7 Timers

Operating supply voltage: 1.62 V to 3.6 V

MSPM0G3505SDGS28R Product Features:

Core

Arm 32-bit Cortex-M0+ CPU with Memory Protection Unit up to 80MHz

Operating Characteristics

Operating Temperature Range: -40°C to 125°C

Wide Supply Voltage Range: 1.62V to 3.6V

Memory

Error Correcting Code (ECC) and up to 128KB Flash Memory subject to ECC up to 128KB of Flash memory

ECC-protected, hardware parity and up to 32KB of SRAM

Optimised low-power mode

Running: 96µA/MHz (CoreMark)

Sleep: 458µA at 4MHz

Stop: 47µA at 32kHz

Standby: 1.5µA with RTC and SRAM retention

Shutdown: 78nA with IO wake-up capability Intelligent Digital Peripherals Wake-up capability

Intelligent digital peripherals

7-channel DMA controller

Maths accelerator supporting DIV, SQRT, MAC and TRIG calculations

Seven timers supporting up to 22 PWM channels
