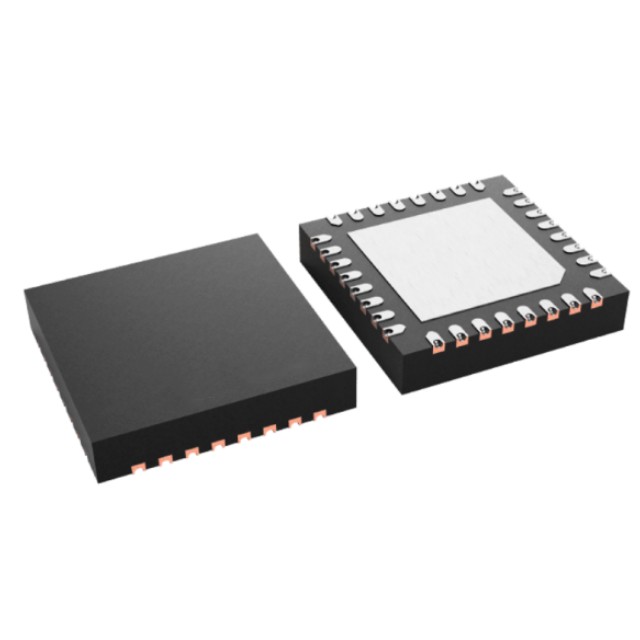

MSP430FR2533IRHBR is ultra-low-power MSP430™ microcontrollers for capacitive touch sensing that feature CapTIvate™ touch technology for buttons, sliders, wheels, and proximity applications. MSP430FR2533IRHBR MCUs with CapTIvate technology provide the most integrated and autonomous capacitive-touch solution in the market with high reliability and noise immunity at the lowest power.

Feature Of MSP430FR2533IRHBR

CapTIvate™ technology – capacitive touch

Performance

Fast electrode scanning with four simultaneous scans

Support for high-resolution sliders with up to 1024 points

Proximity sensing

Reliability

Increased immunity to power line, RF, and other environmental noise

Built-in spread spectrum, automatic tuning, noise filtering, and debouncing algorithms

Enables reliable touch solutions with 10-V RMS common-mode noise, 4-kV electrical fast transients, and 15-kV electrostatic discharge, allowing for IEC‑61000-4-6, IEC‑61000-4-4, and IEC‑61000-4-2 compliance

Reduced RF emissions to simplify electrical designs

Support for metal touch and water rejection designs

Flexibility

Up to 16 self-capacitance and 64 mutual-capacitance electrodes

Mix and match self- and mutual-capacitive electrodes in the same design

Supports multitouch functionality

Wide range of capacitance detection, wide electrode range of 0 to 300 pF

Low power

<5 µA wake-on-touch with four sensors

Wake-on-touch state machine allows electrode scanning while CPU is asleep

Hardware acceleration for environmental compensation, filtering, and threshold detection

Ease of use

CapTIvate Design Center PC GUI lets engineers design and tune capacitive buttons in real time without having to write code

CapTIvate software library in ROM provides ample FRAM for customer application

Embedded microcontroller

16-bit RISC architecture

Clock supports frequencies up to 16 MHz

Wide supply voltage range from 3.6 V down to 1.8 V (minimum supply voltage is restricted by SVS levels, see the SVS specifications)

Applications Of MSP430FR2533IRHBR

• Electronic smart locks, door keypads, and readers

• Garage door systems

• Intrusion HMI keypads and control panels

• Motorized window blinds

• Remote controls

• Personal electronics

• Wireless speakers and headsets

• Handheld video game controllers

• A/V receivers

• White goods

• Small appliances

• Garden and power tools
