The CY8C4146PVE-S422T supply voltage range is 1.71 V to 5.5 V, and all functions and circuits can operate within this range.

The PSoC™ 4100M family allows two different power supply operating modes: unregulated external supply mode and regulated external supply mode.

Product Attributes

Product Category: ARM Microcontrollers - MCUs

Family: PSoC4100S

Mounting Style: SMD/SMT

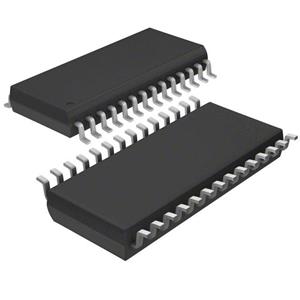

Package / Case: SSOP-28

Core: ARM Cortex M0+

Programme memory size: 64 kB

Data bus width: 32 bit

ADC resolution: 10 bit, 12 bit

Maximum clock frequency: 48 MHz

Number of inputs/outputs: 24 I/Os

Data RAM size: 8 kB

Supply voltage - min: 1.71 V

Supply voltage - max: 5.5 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Analogue supply voltage: 1.71 V to 5.5 V

Data Ram Type: SRAM

Data ROM Size: 8 kB

Data Rom Type: SROM

Interface Type: I2C, SPI, UART

Operating Supply Voltage: 3.3 V

Processor Family: PSoC 4100S
